(35.525.AA[02]) - VAR - 713687006 - 2 FUNCTION MULTI COUPLER HOSE KIT - L735, L745 FOR FARMALL 95, 105

Запчасти Case IH L745 (35.525.AA[02]) - VAR - 713687006 - 2 FUNCTION MULTI COUPLER HOSE KIT - L735, L745 FOR FARMALL 95, 105 (35) - HYDRAULIC SYSTEMS

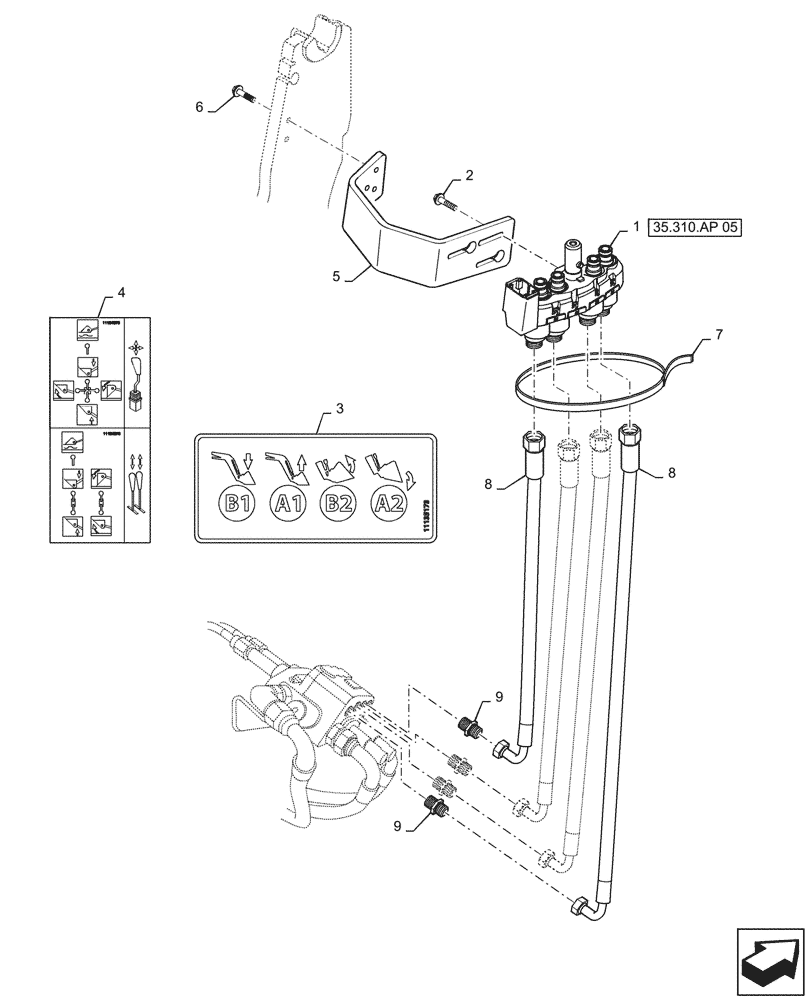

Схема запчастей Case IH L745 - (35.525.AA[02]) - VAR - 713687006 - 2 FUNCTION MULTI COUPLER HOSE KIT - L735, L745 FOR FARMALL 95, 105 (35) - HYDRAULIC SYSTEMS
35.310.ap 05
8
9
1
7
4
5
8
2
6
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR5044990

COUPLING,MC4 J 7/8"

1шт.

2

LDR5006018

SCREW,M8 x 25mm

2шт.

3

LDR11135173

DECAL

1шт.

4

LDR11134370

DECAL

1шт.

5

LDR10391712

BRACKET

1шт.

6

LDR5005999

SCREW,M10 x 45mm

2шт.

7

LDR5033606

CABLE TIE

2шт.

8

LDR9032037

HOSE,1070mm L

4шт.

9

LDR5027928

END FITTING,7/8" UNF JIC - M22 x 1.5

4шт.
