(35.102.AE[03]) - VAR - 713600016 - 3 FUNCTION ELECTRONIC LOADER MOUNTED VALVE KIT - CONTROL VALVE - FOR MAXXUM 110, 115, 120, 125, 130, 140 W/ CCLS

Запчасти Case IH L745 (35.102.AE[03]) - VAR - 713600016 - 3 FUNCTION ELECTRONIC LOADER MOUNTED VALVE KIT - CONTROL VALVE - FOR MAXXUM 110, 115, 120, 125, 130, 140 W/ CCLS (35) - HYDRAULIC SYSTEMS

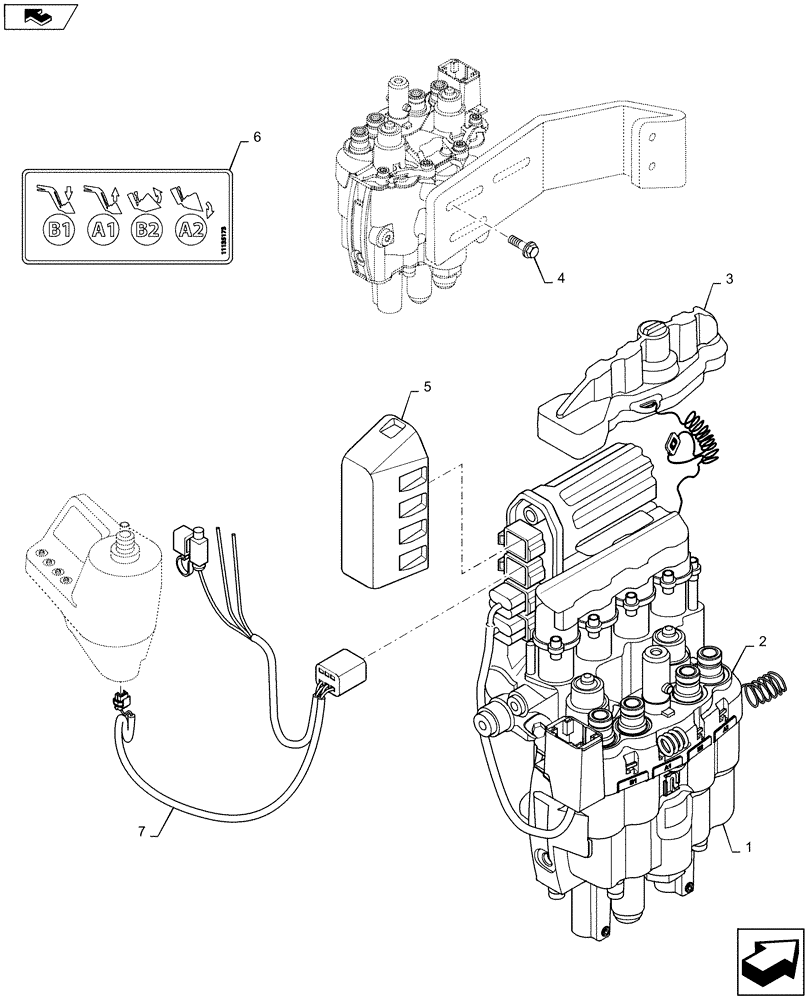

Схема запчастей Case IH L745 - (35.102.AE[03]) - VAR - 713600016 - 3 FUNCTION ELECTRONIC LOADER MOUNTED VALVE KIT - CONTROL VALVE - FOR MAXXUM 110, 115, 120, 125, 130, 140 W/ CCLS (35) - HYDRAULIC SYSTEMS
2
1
5
6
7
home
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR10570166

CONTROL VALVE

1шт.

2

LDR10570096

CAP

1шт.

3

LDR5034232

DUST CAP

1шт.

4

LDR5006018

SCREW,M8 x 25mm

3шт.

5

LDR5101096

PROTECTIVE COVER

1шт.

6

LDR11135173

DECAL

1шт.

7

LDR5102118

WIRE HARNESS

1шт.

Выбрано товаров: 7
