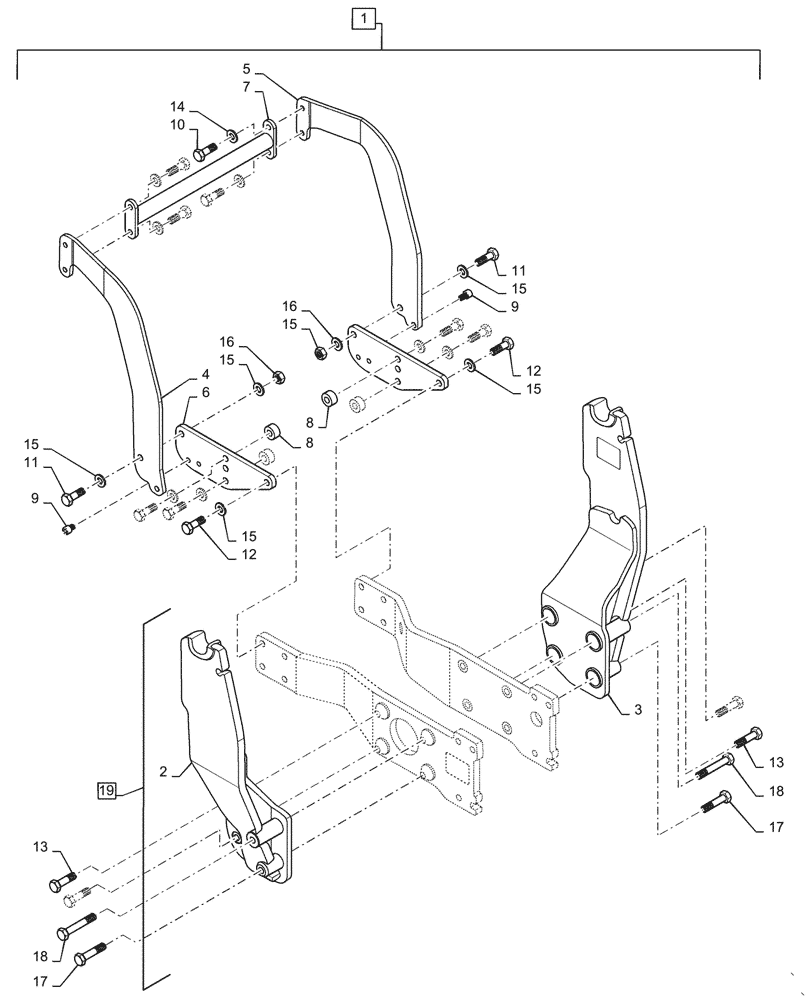

Запчасти Case IH L745 (39.100.220[02]) - VAR - 730896006 - UPRIGHTS, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Uprights, Incl 2 - 17, Order Through Wholegoods 730896006

1шт.

Compatible Tractors - MAXXUM 110/120/130 Efficient Power, 4 Cylinder, T4

1шт.

2

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1, 18

1шт.

3

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1, 18

1шт.

4

LDR10411693

GUARD

Grille, LH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

5

LDR10411694

GUARD

Grille, RH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

6

LDR10412790

BRACKET

Grille Guard

2шт.

7

LDR10411696

BAR

Cross Member

1шт.

8

LDR1109053

SPACER

Sleeve, 25mm Thk

4шт.

9

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

10

LDR5002170

SCREW

M16 x 30mm L, Cl 8.8

4шт.

11

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

2шт.

12

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

6шт.

13

LDR5002220

BOLT

M20 x 70mm L, Cl 10.9

4шт.

14

LDR5013105

WASHER

17mmID x 30mm OD x 3mm Thk

4шт.

15

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

10шт.

16

LDR5011559

LOCK NUT,M20

2шт.

17

LDR5002208

SCREW,M20 x 140mm L

2шт.

18

LDR5002915

SCREW

M20 x 180mm L, Cl 8.8

2шт.

19

LDR60008411

KIT

Upright, Incl 2, 3

1шт.
