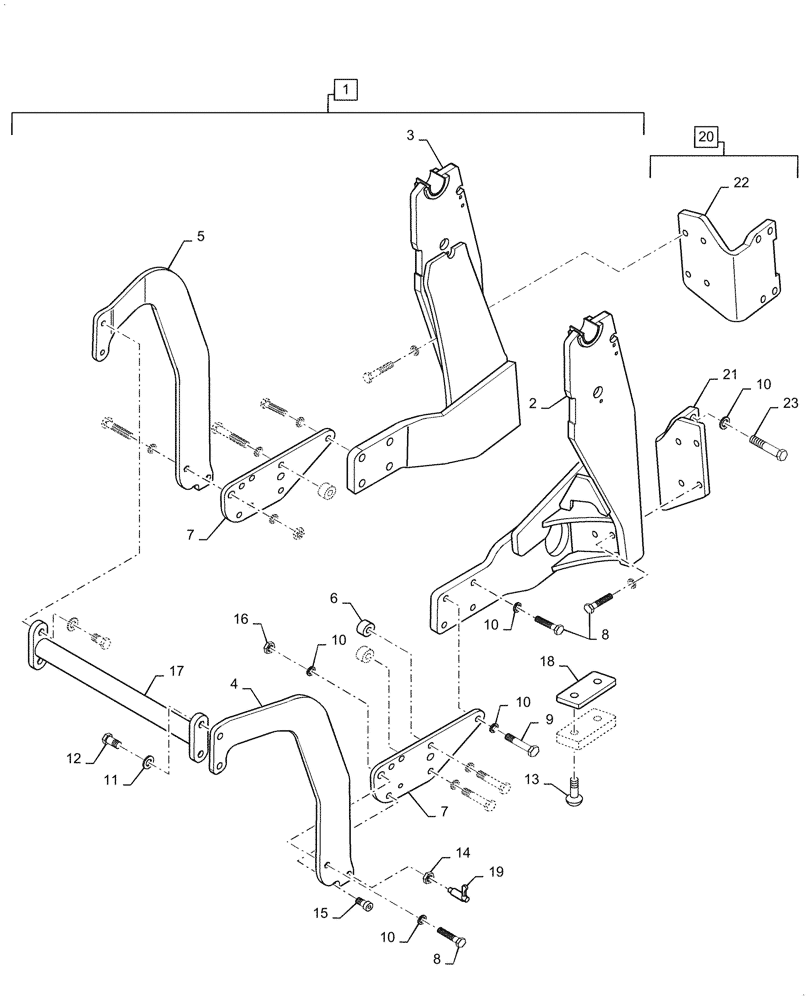

Запчасти Case IH L740 (39.100.170) - VAR - 715456006, 716454036 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 13, 15 - 18, Order Through Wholegoods 715456006

1шт.

Compatible Tractors - MXU 100/110, MAXXUM 110/120/130, 4 Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10411693

GUARD

Grille, LH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

5

LDR10411694

GUARD

Grille, RH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

6

LDR1109053

SPACER

25mm Thk

4шт.

7

LDR10412790

BRACKET

Support

2шт.

8

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

16шт.

9

LDR5002203

BOLT

M20 x 70mm L, Cl 8.8

6шт.

10

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

32шт.

11

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

4шт.

12

LDR5002170

SCREW

M16 x 30mm L, Cl 8.8

4шт.

13

LDR5005990

BOLT,M10 x 30mm, Cl 10.9

4шт.

14

LDR5011922

NUT

Locking Pin

2шт.

15

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

16

LDR5011559

LOCK NUT,M20

2шт.

17

LDR10411696

BAR

Cross Member

1шт.

18

LDR10356810

PLATE

Spacer

2шт.

19

LDR5016994

PIN

Locking

2шт.

20

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 10, 21 - 23, Order Through Wholegoods 716454036

1шт.

Compatible Tractors - MXU 100/110, MAXXUM 110/120/130, 4 Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

Bracket, LH, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Bracket, RH, Incl in 1

1шт.

23

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

8шт.
