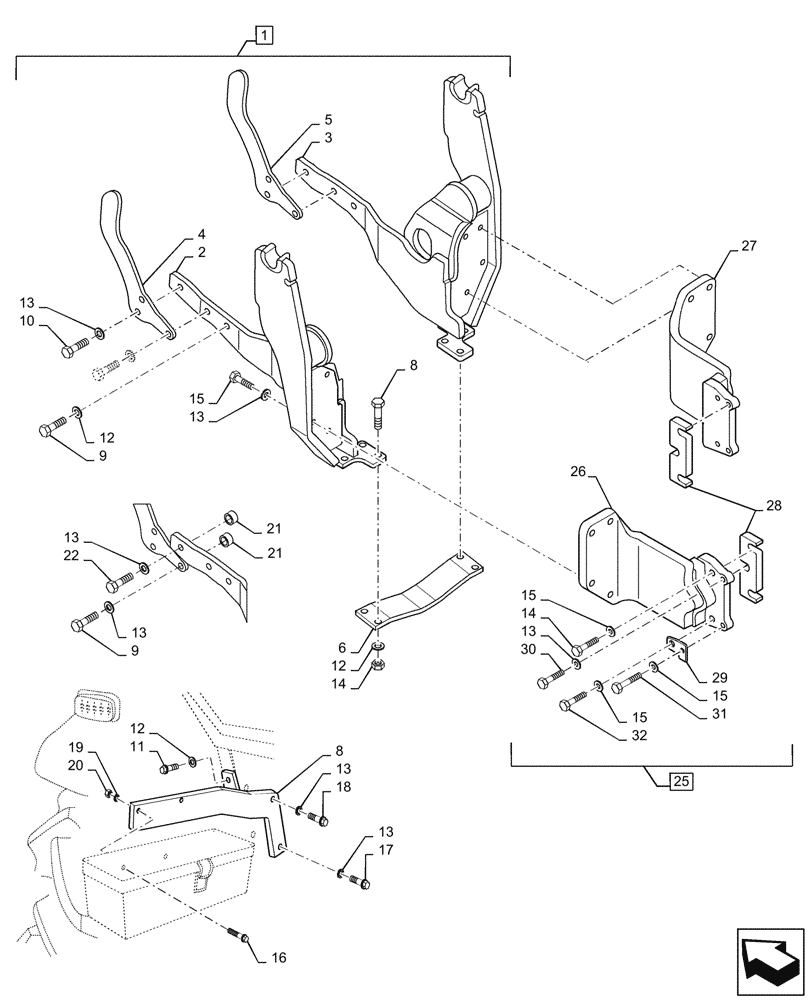

Запчасти Case IH L740 (39.100.150) - VAR - 717688006, 730655006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 24, Order Through Wholegoods 717688006

1шт.

Compatible Tractors - Farmall 85/95/105/115U 2WD/4WD

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10389439

GUARD

Grille, LH

1шт.

5

LDR10389440

GUARD

Grille, RH

1шт.

6

LDR10386924

SUPPORT

Cross Bar

1шт.

7

LDR10387152

SPACER

4шт.

8

LDR10360763

BRACKET

Support

1шт.

9

LDR5002155

BOLT

M16 x 60mm L, Cl 8.8

4шт.

10

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

6шт.

11

LDR5002214

BOLT,Hex, M20 x 50mm, Cl 10.9

6шт.

12

LDR5002752

BOLT

1шт.

13

LDR5013105

WASHER

17mm ID x 30mm L x 3mm Thk

9шт.

14

LDR5002203

BOLT

M20 x 70mm L, Cl 8.8

4шт.

15

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

24шт.

16

LDR5011557

LOCK NUT,M16

4шт.

17

LDR5002934

SCREW

M20 x 55mm L, Cl 10.9

8шт.

18

LDR5002051

SCREW,M6S

2шт.

19

LDR5002052

BOLT

M8 x 25mm L

1шт.

20

LDR5002054

SCREW,M6S 8mm x 35mm

1шт.

21

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

2шт.

22

LDR5011553

NUT,M8

2шт.

23

LDR5002086

SCREW

M10 x 100mm L, Cl 8.8

2шт.

24

LDR5011054

NUT,M10, Cl 8.8

4шт.

25

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 13 - 15, 26 - 32, Order Through Wholegoods 730655006

1шт.

Compatible Tractors - Farmall 85/95/105/115U 2WD/4WD

1шт.

26

NSS

NOT SOLD SEPARAT

Bracket, LH, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Bracket, RH, Incl in 1

1шт.

28

LDR10387171

BRACKET

Spacer, 20mm Thk

2шт.

29

LDR10387172

BRACKET

Outer Spacer

1шт.

30

LDR5002755

BOLT

M16 x 1.5 x 70mm L, Cl 8.8

2шт.

31

LDR5002761

BOLT

M16 x 1.5 x 90mm L, Cl 8.8

2шт.

32

LDR5002201

BOLT

M20 x 80mm L, Cl 8.8

2шт.
