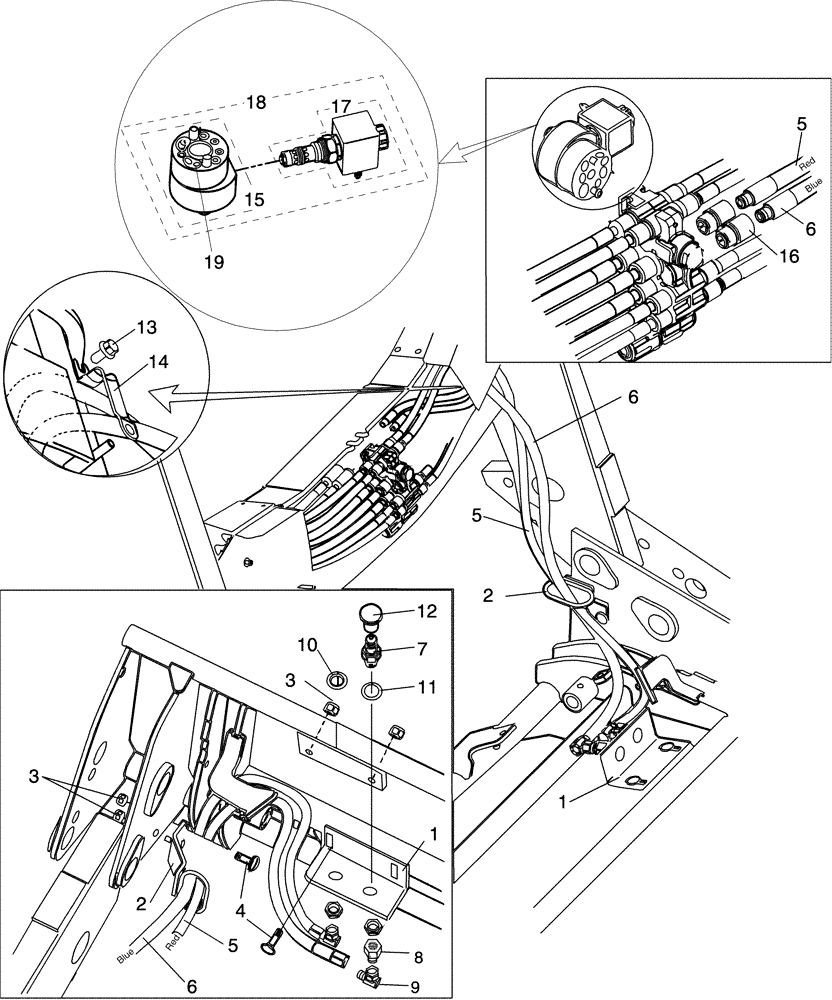

Запчасти Case IH L740 (35.734.AA[04]) - 3RD FUNCTION HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

LDR5219187

BRACKET

1шт.

2

LDR5219183

GUIDE

1шт.

3

LDR5011554

NUT,M10

M10

4шт.

4

LDR5006002

SCREW

M10 x 30 FZB

4шт.

5

LDR9031251

FLEXIBLE HOSE

1шт.

6

LDR9031250

FLEXIBLE HOSE

1шт.

7

LDR5044915

QUICK MALE COUPLING

1/2"

2шт.

8

LDR5027827

HYD CONNECTOR

1шт.

9

LDR1120099

COUPLING

3/8" - 90 Degrees

1шт.

10

LDR5022159

WASHER

Blue

1шт.

11

LDR5022157

WASHER

Red

1шт.

12

LDR5044129

CAP

2шт.

13

LDR5006007

SCREW

M8 x 16

1шт.

14

LDR5215066

GUIDE

1шт.

15

LDR10550324

SERVO-CONTROL

1шт.

16

LDR9031325

COUPLING

1/2", for Cap see 20

2шт.

17

LDR10550323

SHUT-OFF VALVE

1шт.

18

LDR10550265

SERVO-CONTROL

1шт.

19

LDR5040040

SEAL KIT

1шт.

20

LDR11120621

PLUG

1/2", Use to Cap off Valve Port when Removing 16

1шт.
