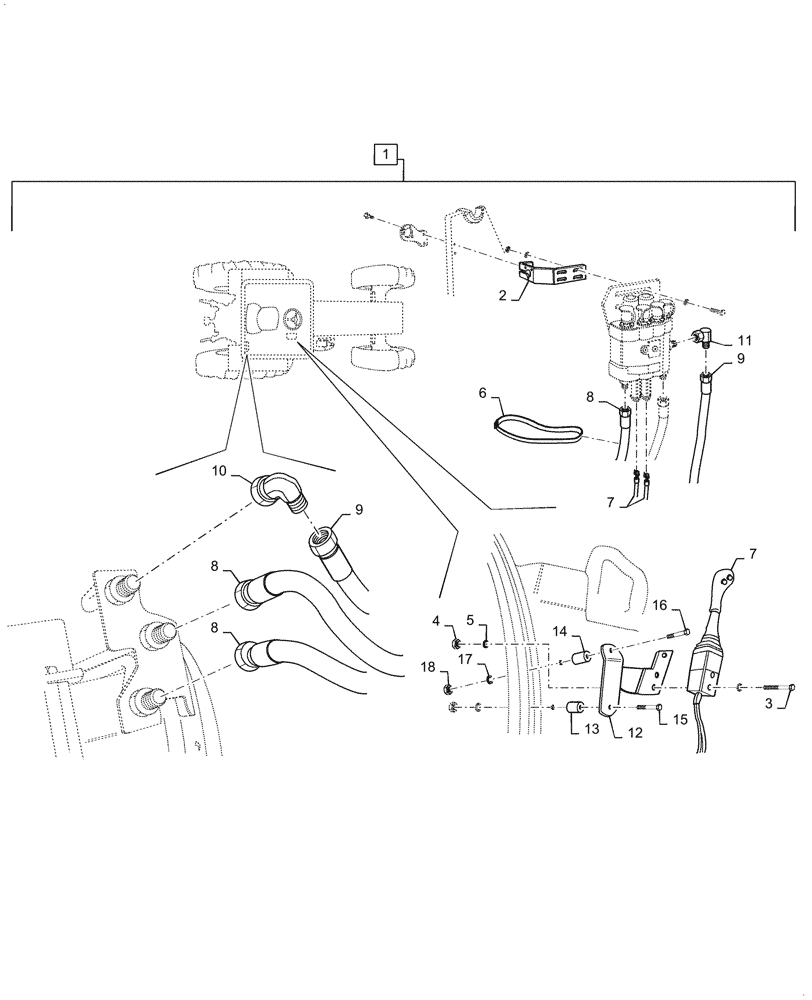

Запчасти Case IH L740 (35.355.AC[03]) - VAR - 717542006 - JOYSTICK HYDR LINES, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Joystick Hydraulic Kit, Incl 2 - 18, Order Through Wholegoods 717542006

1шт.

2

LDR10360022

KIT

Support Bracket

1шт.

3

LDR5002062

SCREW

M8 x 90mm L, Cl 8.8

2шт.

4

LDR5011053

NUT

M8

2шт.

5

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

4шт.

6

LDR5033606

CABLE TIE

6шт.

7

LDR5020354

CABLE

Joystick, 1800mm L

2шт.

3 Wire Joystick

1шт.

8

LDR9031562

HOSE

1-1/16" JIC x 1" UNF x 1600mm L

2шт.

9

LDR9031563

HOSE

1-1/16" JIC x 1" UNF x 1800mm L

1шт.

10

LDR5027460

END FITTING

1" UNF

1шт.

11

LDR5027936

ELBOW

1-1/16" JIC x 1-1/16" JIC

1шт.

12

LDR10358866

SUPPORT

Control Device

1шт.

13

LDR10358869

SPACER

Sleeve, 45mm L

1шт.

14

LDR10358870

SPACER

Sleeve, 55mm L

1шт.

15

LDR5002082

SCREW

M10 x 70mm L, Cl 8.8

1шт.

16

LDR5002092

SCREW

M10 x 80mm L, Cl 8.8

1шт.

17

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

2шт.

18

LDR5011554

NUT,M10

2шт.

19

LDR5020909

KNOB

Joystick

1шт.
