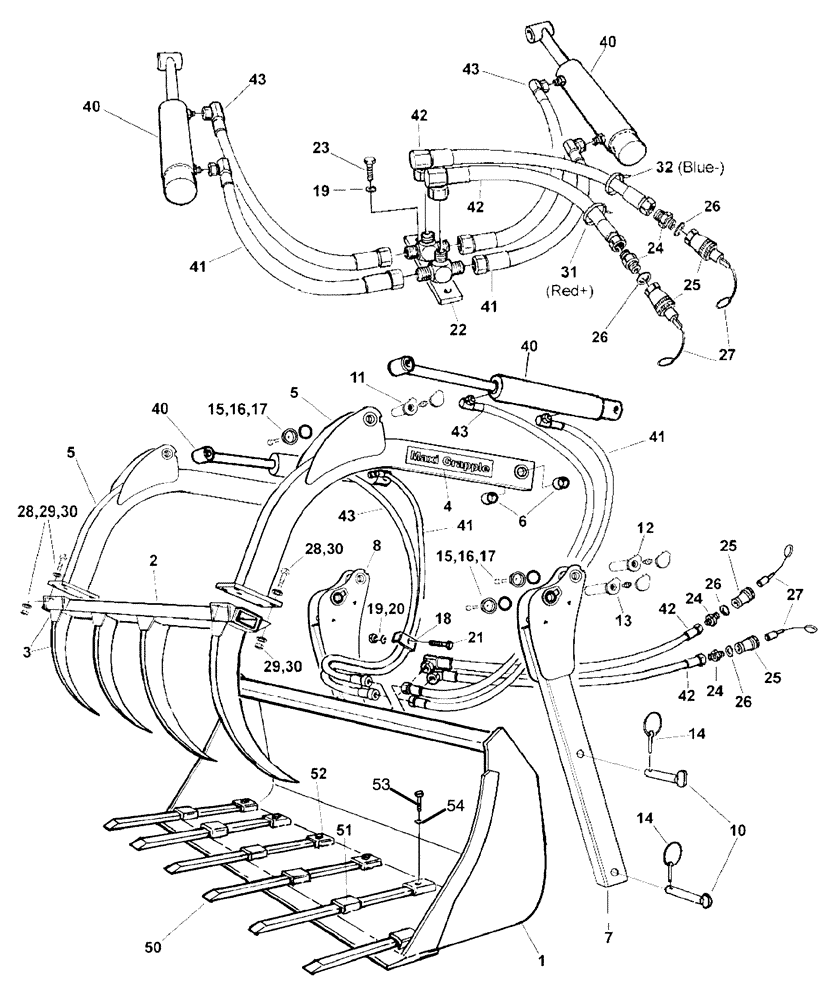

Запчасти Case IH L740 (82.300.AQ[20]) - VAR - 717494006 - MAXI - GRAPPLE 210T - MK2 COMPLETE (82) - FRONT LOADER & BUCKET

1

LDR11260118

BUCKET

1шт.

2

LDR11260645

GRAPPLE

BOX

1шт.

3

LDR11261280

KIT

Claw Kit (option) Inc. claw and plate

1шт.

4

LDR1123675

DECAL

2шт.

5

LDR11260643

BEAM

2шт.

6

LDR5018515

BUSHING,30mm L

2шт.

7

LDR11260651

BRACKET

1шт.

8

LDR11260650

BRACKET

1шт.

10

LDR1116643

PIVOT PIN

4шт.

11

LDR9020043

PIVOT PIN,30mm OD x 105mm L

2шт.

12

LDR9020046

PIVOT PIN

2шт.

13

LDR9020047

PIVOT PIN

2шт.

14

LDR1102001

LINCH PIN

4шт.

15

LDR5215131

CAP,Locking Cover

6шт.

16

LDR5022089

RING

6шт.

17

LDR5002076

SCREW

6шт.

18

LDR5016968

CLAMP BRACKET

2шт.

19

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

6шт.

20

LDR5011553

NUT,M8

2шт.

21

LDR5002059

SCREW,M8 x 60mm

2шт.

22

LDR10834151

UNION

1шт.

23

LDR5002058

SCREW

2шт.

24

LDR5027934

HYD CONNECTOR,3/8" x 1/2"

2шт.

25

LDR5044127

COUPLING, QUICK, FEM,1/2"

2шт.

26

LDR5013604

WASHER,21mm ID x 28mm OD

2шт.

27

LDR5044130

PROTECTIVE COVER

2шт.

28

LDR5002154

BOLT,M16 x 50mm

8шт.

29

LDR5011557

LOCK NUT,M16

8шт.

30

LDR5013105

WASHER

16шт.

31

LDR5022177

CABLE TIE

CABLE STRAP

1шт.

32

LDR5022179

CABLE TIE

CABLE STRAP

1шт.

40

LDR12709710

CYLINDER,Double Acting, 40mm Rod

2шт.

See Figure 08-31

1шт.

LDR12709710R

REMAN-HYD CYLINDER

L720, LX720

2шт.

LDR12709710C

CORE-HYD CYLINDER

Return Number

1шт.

41

LDR1103162

FLEXIBLE HOSE,1500mm L

2шт.

42

LDR1103116

FLEXIBLE HOSE,550mm L

2шт.

43

LDR1103110

FLEXIBLE HOSE,1800mm L

2шт.

LDR10834140

TINE

Tine Kit (option) Inc. 50-52

1шт.

50

LDR10834142

TINE

Inc. 53, 54

1шт.

51

LDR10834138

BRACKET, SUPPORTING

1шт.

52

LDR10834147

BRACKET, SUPPORTING

1шт.

53

LDR5002151

BOLT

1шт.

54

LDR5013105

WASHER

1шт.
