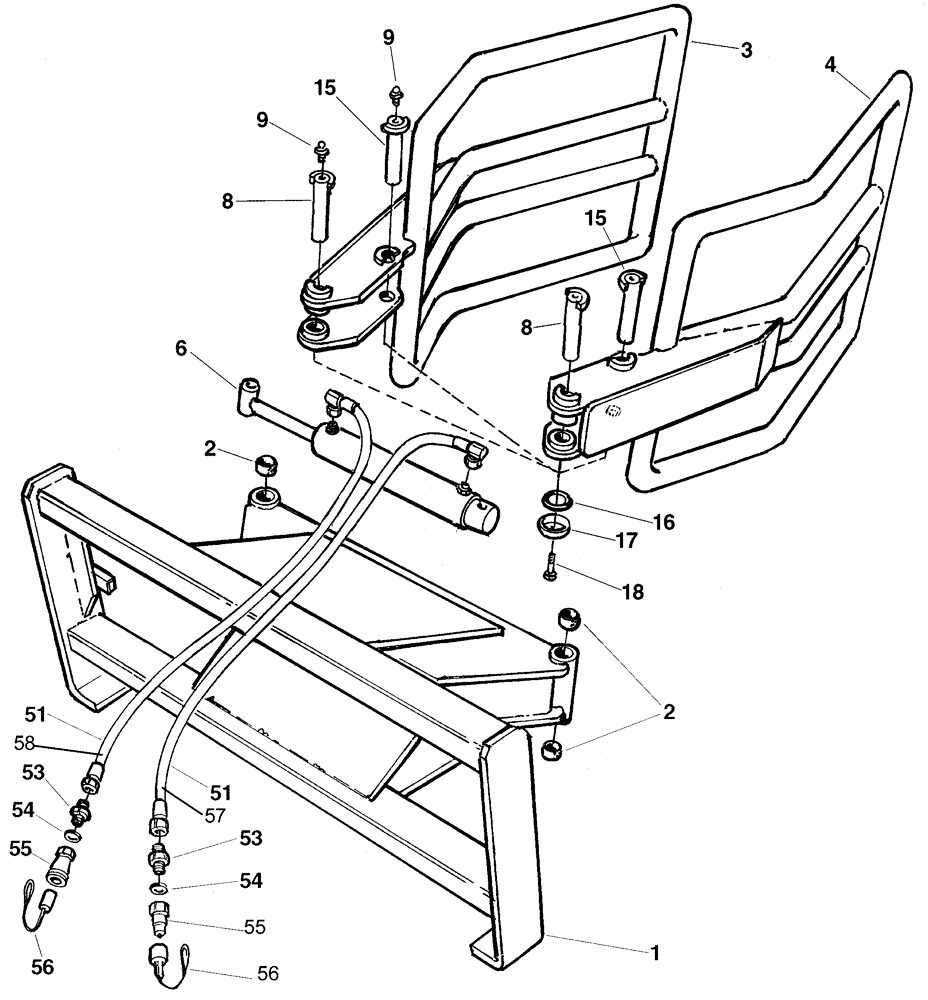

Запчасти Case IH L740 (82.300.AQ[10]) - VAR - 717477006 - UNIGRIP 160 (82) - FRONT LOADER & BUCKET

1

NSS

NOT SOLD SEPARAT

1шт.

2

LDR5018513

BUSHING,40mm ID x 44mm OD x 20mm L

40 x 20

4шт.

3

NSS

NOT SOLD SEPARAT

Left

1шт.

4

NSS

NOT SOLD SEPARAT

Right

1шт.

6

LDR12710810

CYLINDER,Double Acting, 40mm Rod, 375mm Stroke

Dia. 80/40

1шт.

See Figure 08-29

1шт.

8

LDR1116806

30 OD x 175

1шт.

9

LDR5023005

LUBE NIPPLE

M10 x 1

1шт.

13

LDR1123440

1шт.

15

LDR1116485

40 OD x 175

1шт.

16

LDR5022089

RING

1шт.

17

LDR142893

CAP

1шт.

18

LDR5002076

SCREW

1шт.

51

LDR1103117

FLEXIBLE HOSE

3/8" - 90 Degree - 1200

2шт.

53

LDR1120011

HYD CONNECTOR

R 3/8" - R 1/2"

2шт.

54

LDR5013604

WASHER,21mm ID x 28mm OD

Copper 21 x 28

2шт.

55

LDR5044127

COUPLING, QUICK, FEM,1/2"

R 1/2 Female

2шт.

56

LDR5044130

PROTECTIVE COVER

2шт.

57

LDR5022177

CABLE TIE

CABLE STRAP Red

1шт.

58

LDR5022179

CABLE TIE

CABLE STRAP Blue

1шт.

59

LDR5033606

CABLE TIE

1шт.
