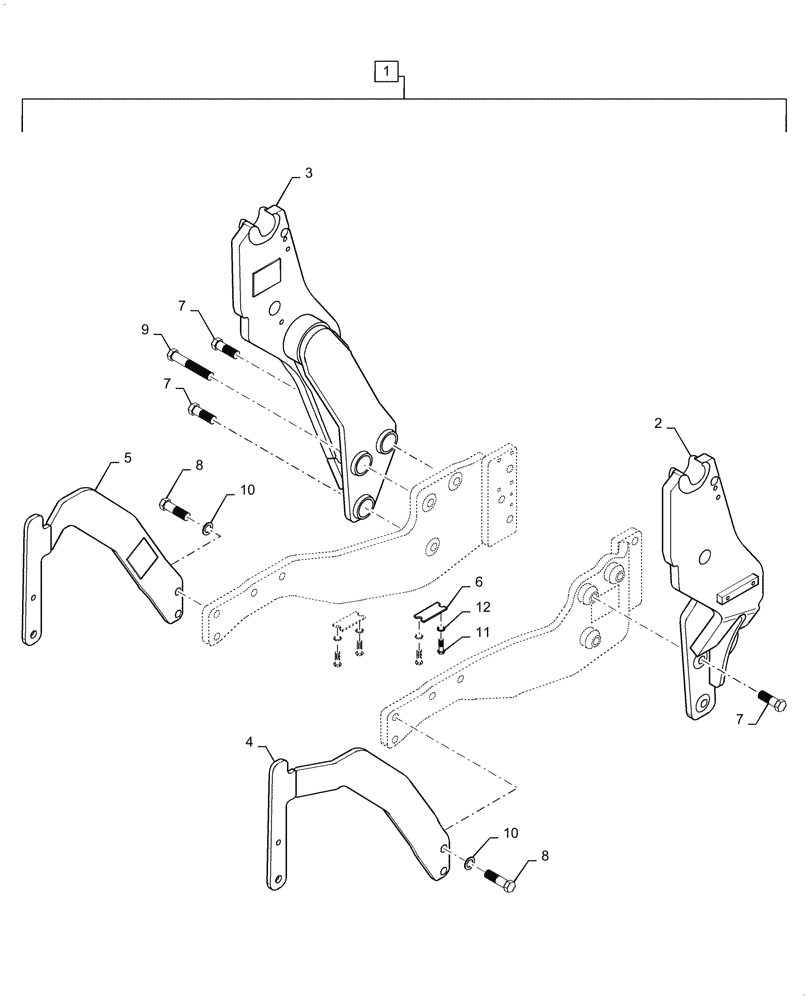

Запчасти Case IH L735 (39.100.130[02]) - VAR - 713704006 - UPRIGHTS, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Uprights, Incl 2 - 12, Order Through Wholegoods 713704006

1шт.

Compatible Tractors - Farmall U 105/115 ElectroCommand, 4 Cylinder, T4

1шт.

Must Have TPS Side Rails Installed Before Installing

1шт.

2

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 2

1шт.

4

LDR10416843

GUARD

Grille, LH

1шт.

5

LDR10416844

GUARD

Grille, RH

1шт.

6

LDR10356810

PLATE

Spacer

2шт.

7

LDR5002220

BOLT

M20 x 70mm L, Cl 10.9

5шт.

8

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

4шт.

9

LDR20705246

SCREW

M20 x 140mm L, Cl 10.9

1шт.

10

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

4шт.

11

LDR5002089

BOLT,M10 x 25mm, Cl 8.8

4шт.

12

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

4шт.
