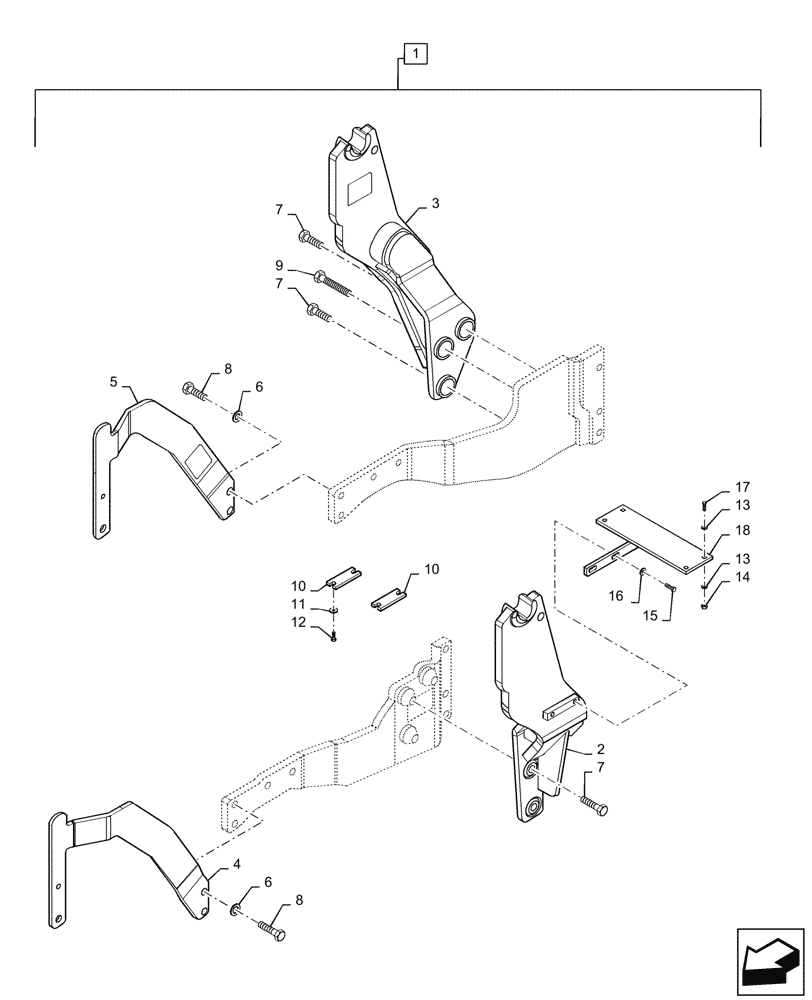

Запчасти Case IH L735 (39.100.120[02]) - VAR - 713685006 - UPRIGHTS, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NS

NOT SERVICED

Uprights, Order Through Wholegoods 713685006, Incl 2 - 18

1шт.

Compatible Tractors - Farmall 95/105, 4 Cylinder, T4

1шт.

Must Have TPS Side Rails Installed Before Installing

1шт.

2

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Upright, RH. Incl in 1

1шт.

4

LDR10416843

GUARD

Grille, LH

1шт.

5

LDR10416844

GUARD

Grille, RH

1шт.

6

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

4шт.

7

LDR5002220

BOLT

M20 x 70mm L

5шт.

8

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

4шт.

9

NSS

NOT SOLD SEPARAT

Bolt, M20 x 140mm L, Incl in 1

1шт.

10

LDR10356810

PLATE

2шт.

11

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

4шт.

12

LDR5002089

BOLT,M10 x 25mm, Cl 8.8

4шт.

13

LDR5013108

WASHER

6.4mm ID x 12mm OD x 1.5mm Thk

8шт.

14

LDR20708137

NUT

M6

4шт.

15

LDR5002101

BOLT

M12 x 25mm L

2шт.

16

LDR5013104

WASHER

13.5mm ID x 24mm OD x 2mm Thk

2шт.

17

NSS

NOT SOLD SEPARAT

Bolt, M6 x 20mm L, Incl in 1

4шт.

18

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.
