(39.100.050[02]) - VAR - 713729006 - SUBFRAME, MOUNTING PARTS (AFTER MAY 16 2016)

Запчасти Case IH L735 (39.100.050[02]) - VAR - 713729006 - SUBFRAME, MOUNTING PARTS (AFTER MAY 16 2016) (39) - FRAMES AND BALLASTING

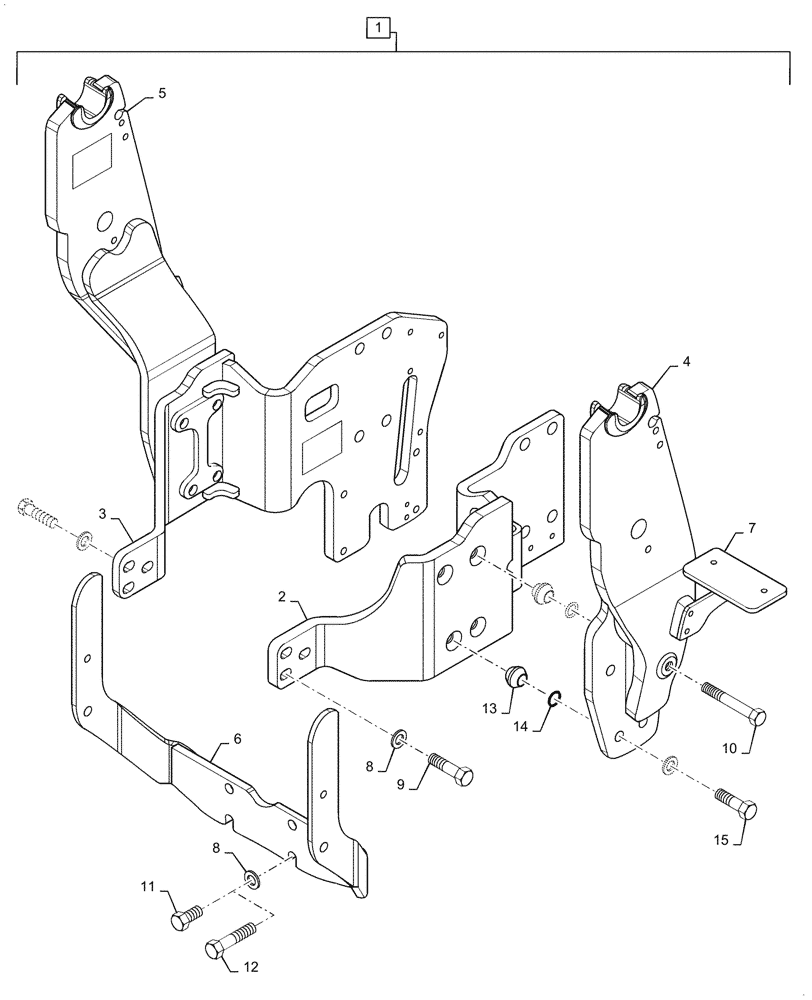

Схема запчастей Case IH L735 - (39.100.050[02]) - VAR - 713729006 - SUBFRAME, MOUNTING PARTS (AFTER MAY 16 2016) (39) - FRAMES AND BALLASTING
6
4
12
7
14
3
5
8
13
8
2
11
9
10
15
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe Set, Incl 2 - 15, Order Through Wholegoods 713729006

1шт.

Compatible Tractors - Farmall 90C/100C/110C/120C ROPS/CAB 2WD/4WD T4B

1шт.

2

NSS

NOT SOLD SEPARAT

Siderail, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Siderail, RH, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

6

LDR10417650

GUARD

Grille

1шт.

7

LDR60007801

BRACKET

Toolbox

1шт.

8

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

16шт.

9

LDR5002989

SCREW

M20 x 1.5 x 75mm L

6шт.

10

LDR20705246

SCREW

M20 x 140mm L, Cl 10.9

2шт.

11

LDR5002209

SCREW

M20 x 45mm L

4шт.

Used If Weight Carrier Not Installed

1шт.

12

LDR5002210

BOLT

M20 x 90mm L, Cl 8.8

4шт.

Used If Weight Carrier Installed

1шт.

13

LDR10416103

Spacer

CONE

8шт.

14

LDR5050222

O-RING

8шт.

15

LDR5002220

BOLT

M20 x 70mm L, Cl 10.9

6шт.
