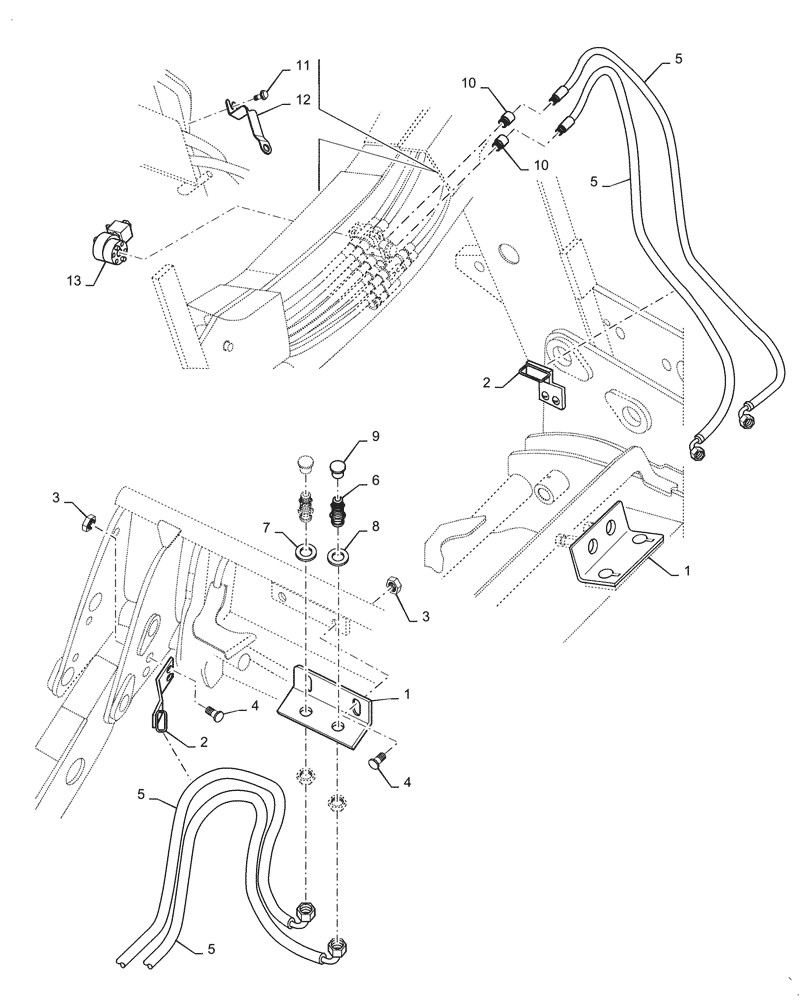

Запчасти Case IH L735 (35.734.AA[02]) - HYDR LINES, 3RD FUNCTION (35) - HYDRAULIC SYSTEMS

1

LDR5220303

BRACKET

Mounting

1шт.

2

LDR5219183

GUIDE

Hose

1шт.

3

LDR5011554

NUT,M10

Loc - King

4шт.

4

LDR5006002

SCREW

M10 x 30mm L

4шт.

5

LDR9031472

HOSE

3/8" OD

2шт.

6

LDR5044940

QUICK MALE COUPLING,3/8" BSP

2шт.

7

LDR5022159

WASHER

Blue

1шт.

8

LDR5022157

WASHER

Red

1шт.

9

LDR5044129

CAP

Dust

2шт.

10

LDR5028005

ADAPTER

1/2"

2шт.

11

LDR5006007

SCREW

M8 x 16

1шт.

12

LDR5215066

GUIDE

Hose

1шт.

13

LDR10550265

SERVO-CONTROL

Block

1шт.
