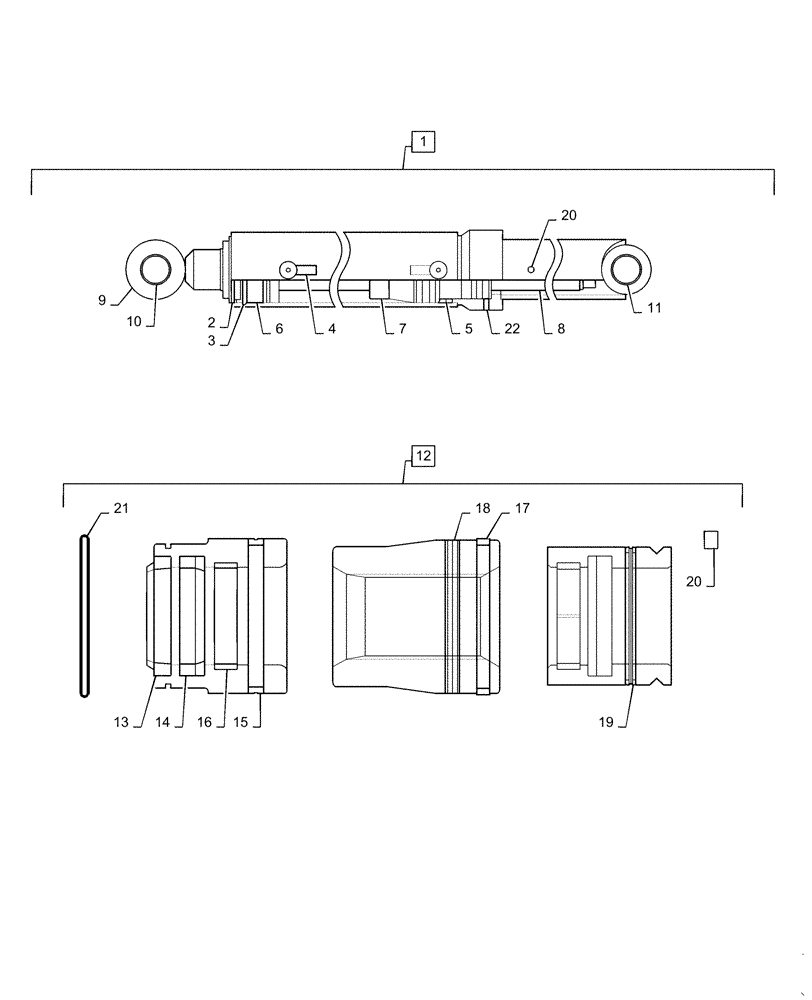

Запчасти Case IH L735 (35.723.020[01]) - BUCKET CYLINDER, HYDRAULIC CYLINDER - MSL (35) - HYDRAULIC SYSTEMS

1

LDR12720510

CYLINDER

Bucket Lift, Incl 2 - 22

1шт.

2

LDR5016618

RING

Retaining

1шт.

3

LDR5016665

RING

Retaining

1шт.

4

LDR5026637

PLUG

Shipping

1шт.

5

LDR12700017

GUIDE

Cylinder Rod

1шт.

6

LDR12707511

BEARING

Hydraulic Cylinder Housing

1шт.

7

LDR12707512

PISTON

Lift Cylinder

1шт.

8

LDR12700915

ROD

Rear

1шт.

9

LDR12712823

ROD

Piston

1шт.

10

LDR5018514

BUSHING,35mm L

2шт.

11

LDR5018515

BUSHING,30mm L

2шт.

12

LDR5033713

SEAL KIT

Services 1, Contains 10 Seals, 1 Plug, Incl 13 - 21

1шт.

13

NSS

NOT SOLD SEPARAT

Wiper, 40mm ID x 50mm OD x 7mm Thk, Incl in 1, 12

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 12

2шт.

15

NSS

NOT SOLD SEPARAT

Cover Seal, 69.6mm ID x 75mm OD x 6.2mm Thk, Incl in 1, 12

1шт.

16

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 9.7mm Thk, Incl in 1, 12

2шт.

17

NSS

NOT SOLD SEPARAT

Guide Ring, 70mm ID x 75mm OD x 5.5mm Thk, Incl in 1, 12

1шт.

18

NSS

NOT SOLD SEPARAT

Piston Seal, 59.5mm ID x 75mm OD x 6.3mm Thk, Incl in 1, 12

1шт.

19

NSS

NOT SOLD SEPARAT

Cover Seal, 52.4mm ID x 58mm OD x 3.6mm Thk, Incl in 1, 12

1шт.

20

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 12

1шт.

21

NSS

NOT SOLD SEPARAT

O - Ring, 53mm ID x 68.26mm OD x 3mm Thk, Incl 1, 12

1шт.

22

LDR5006021

SCREW

Stop

2шт.
