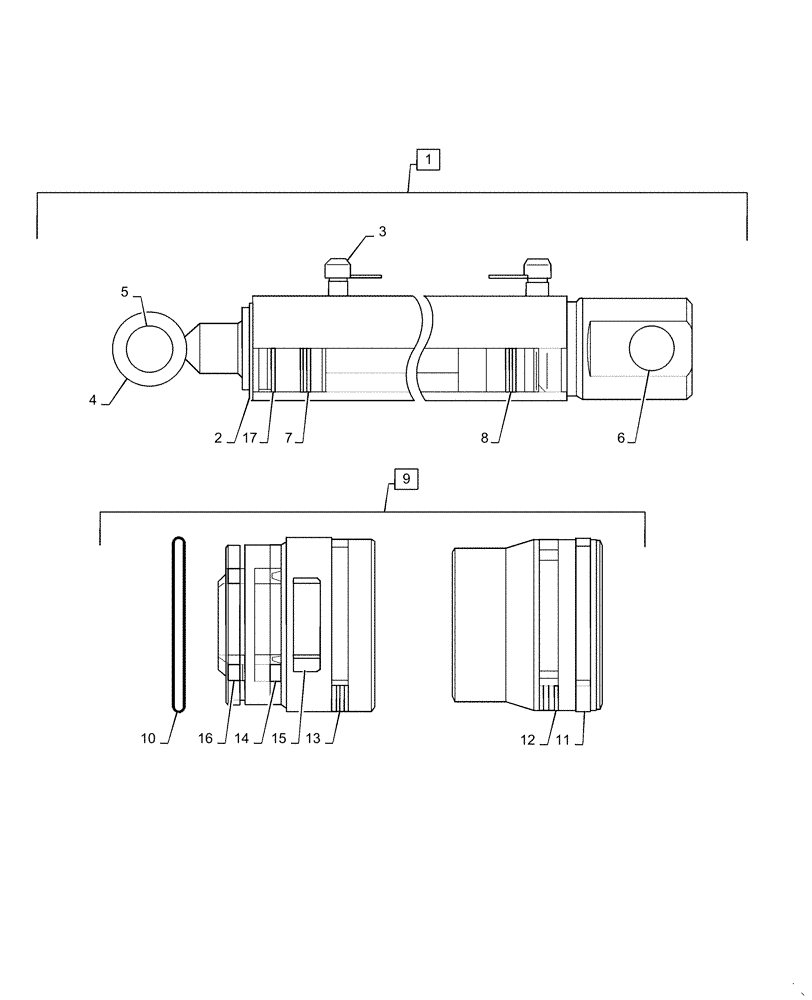

Запчасти Case IH L735 (35.723.010[02]) - BUCKET CYLINDER, HYDRAULIC CYLINDER - NSL (35) - HYDRAULIC SYSTEMS

1

LDR12721310

CYLINDER

Bucket Lift, Incl 2 - 17

1шт.

2

LDR5016618

RING

Retaining

1шт.

3

LDR5026637

PLUG

Shipping

2шт.

4

LDR12712423

PISTON ROD/GLAND

Coupling

1шт.

5

LDR5018514

BUSHING,35mm L

2шт.

6

LDR5018515

BUSHING,30mm L

2шт.

7

LDR12707511

BEARING

Hydraulic Cylinder Housing

1шт.

8

LDR12707512

PISTON

Lift Cylinder

1шт.

9

LDR5033705

SEAL KIT

Services 1, Contains 7 Seals, Incl 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

O - Ring, Incl in 1, 9

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, Incl in 1, 9

1шт.

12

NSS

NOT SOLD SEPARAT

Piston Seal, Incl in 1, 9

1шт.

13

NSS

NOT SOLD SEPARAT

Cover Seal, Incl in 1, 9

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, Incl in 1, 9

1шт.

15

NSS

NOT SOLD SEPARAT

Guide Ring, Incl in 1, 9

1шт.

16

NSS

NOT SOLD SEPARAT

Wiper, Incl in 1, 9

1шт.

17

LDR5016665

RING

Retaining

1шт.
