(35.600.AQ[08]) - VAR - 730804016 - 2 FUNCTION HYDRAULIC VALVE KIT - JOYSTICK BRACKET FOR FARMALL A

Запчасти Case IH L735 (35.600.AQ[08]) - VAR - 730804016 - 2 FUNCTION HYDRAULIC VALVE KIT - JOYSTICK BRACKET FOR FARMALL A (35) - HYDRAULIC SYSTEMS

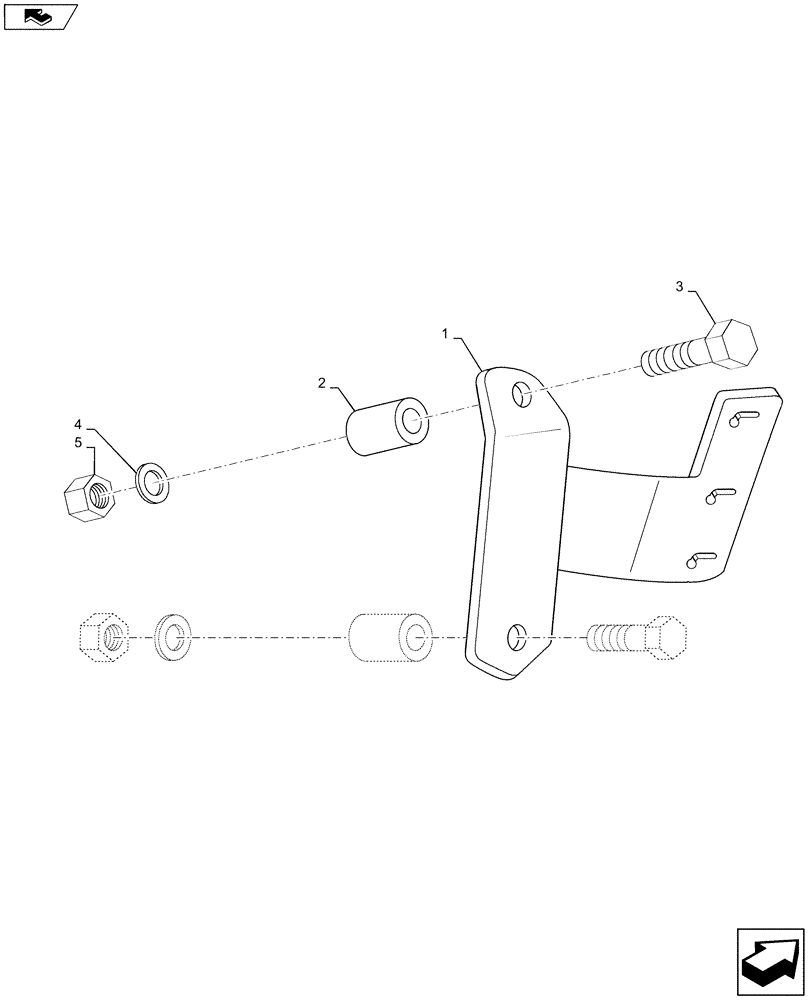

Схема запчастей Case IH L735 - (35.600.AQ[08]) - VAR - 730804016 - 2 FUNCTION HYDRAULIC VALVE KIT - JOYSTICK BRACKET FOR FARMALL A (35) - HYDRAULIC SYSTEMS
3
home
4
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR10411032

BRACKET

Joystick

1шт.

2

LDR9010126

SLEEVE

Joystick Bracket

2шт.

3

LDR5002078

SCREW

M6S M10 x 40

2шт.

4

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

2шт.

5

LDR5011554

NUT,M10

Loc-King M10

2шт.

Выбрано товаров: 5
