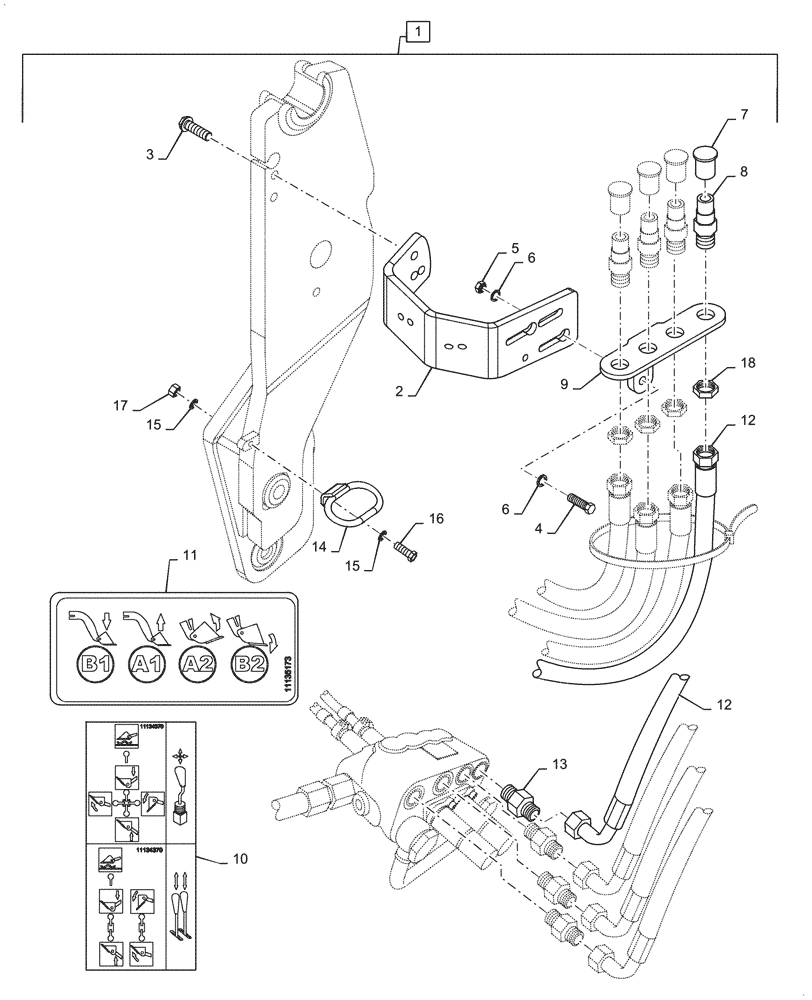

Запчасти Case IH L735 (35.525.AA[38]) - VAR - 713757006 - 2 FUNCTION HOSE KIT FOR FARMALL 90C - 120C, T4B ONLY (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

2 Function Hose Kit W/ Individual Couplers, Incl 2 - 18, Order Through Wholegoods 713757006

1шт.

2

LDR10391712

BRACKET

Support

1шт.

2

LDR10391712

BRACKET

Support

1шт.

3

LDR5005999

SCREW,M10 x 45mm

2шт.

4

LDR5002053

SCREW,M8 x 30mm L

2шт.

5

LDR5011053

NUT

M8

2шт.

6

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

4шт.

7

LDR5040090

DUST CAP

Hydraulic Hose

4шт.

8

LDR5044983

QUICK MALE COUPLING

Incl 18

4шт.

9

LDR10414057

BRACKET

Mounting

1шт.

10

LDR11134370

DECAL

1шт.

11

LDR11135173

DECAL

1шт.

12

LDR9032011

HYDRAULIC HOSE

Flexible, 7/8" OD x 1600mm L

4шт.

13

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

4шт.

14

LDR5221966

GUIDE

Hydraulic Hose, Bracket

1шт.

15

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

2шт.

16

LDR5002053

SCREW,M8 x 30mm L

1шт.

17

LDR5011553

NUT,M8

1шт.

18

NSS

NOT SOLD SEPARAT

Nut, Incl in 1, 8

4шт.
