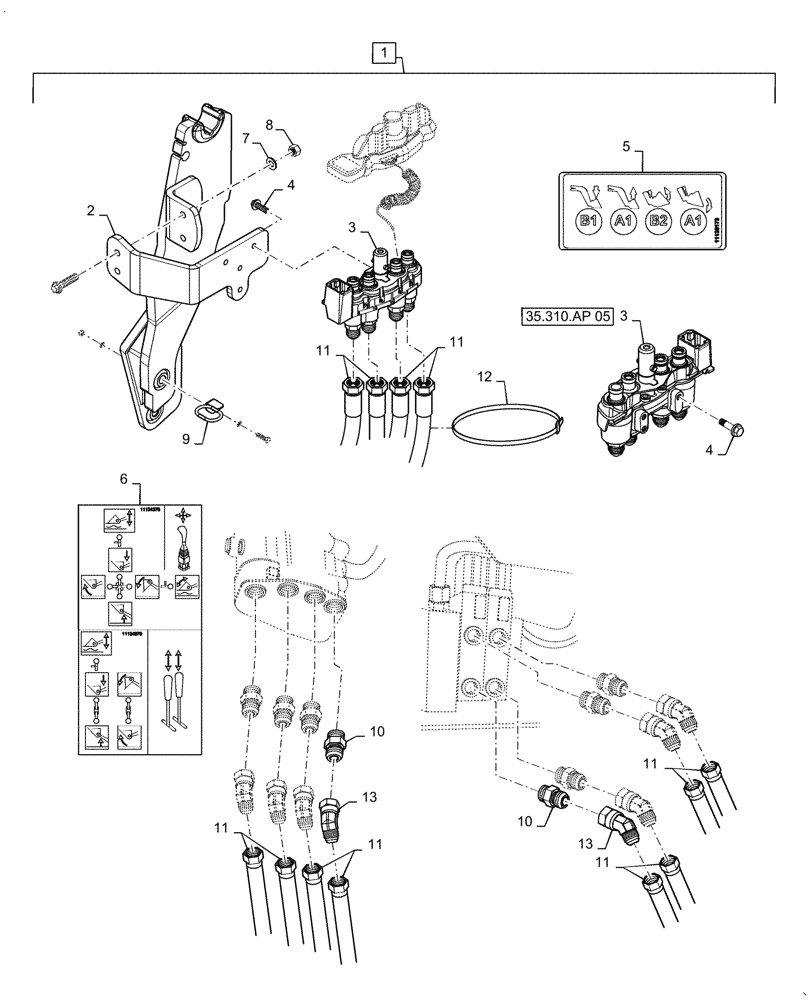

Запчасти Case IH L735 (35.525.AA[37]) - VAR - 713752006 - 2 FUNCTION HOSE KIT W/ MC4 FOR FARMALL 95, 105, 115 T4B (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

2 Function Hose Kit W/ MC4, Incl 2 - 13, Order Through Wholegoods 713752006

1шт.

2

LDR60010329

PLATE

Valve Mounting

1шт.

3

LDR5044990

COUPLING,MC4 J 7/8"

1шт.

4

LDR5006018

SCREW,M8 x 25mm

2шт.

5

LDR11135173

DECAL

1шт.

6

LDR11134370

DECAL

1шт.

7

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

2шт.

8

LDR5011554

NUT,M10

2шт.

9

LDR60010438

GUIDE

Hydraulic Hose

1шт.

10

LDR5027928

END FITTING,7/8" UNF JIC - M22 x 1.5

4шт.

11

LDR9032011

HYDRAULIC HOSE

Flexible, 7/8" OD x 1600mm L

4шт.

12

LDR5033606

CABLE TIE

4шт.

13

LDR5027823

END FITTING

7/8" JIC x 7/8" JIC

4шт.
