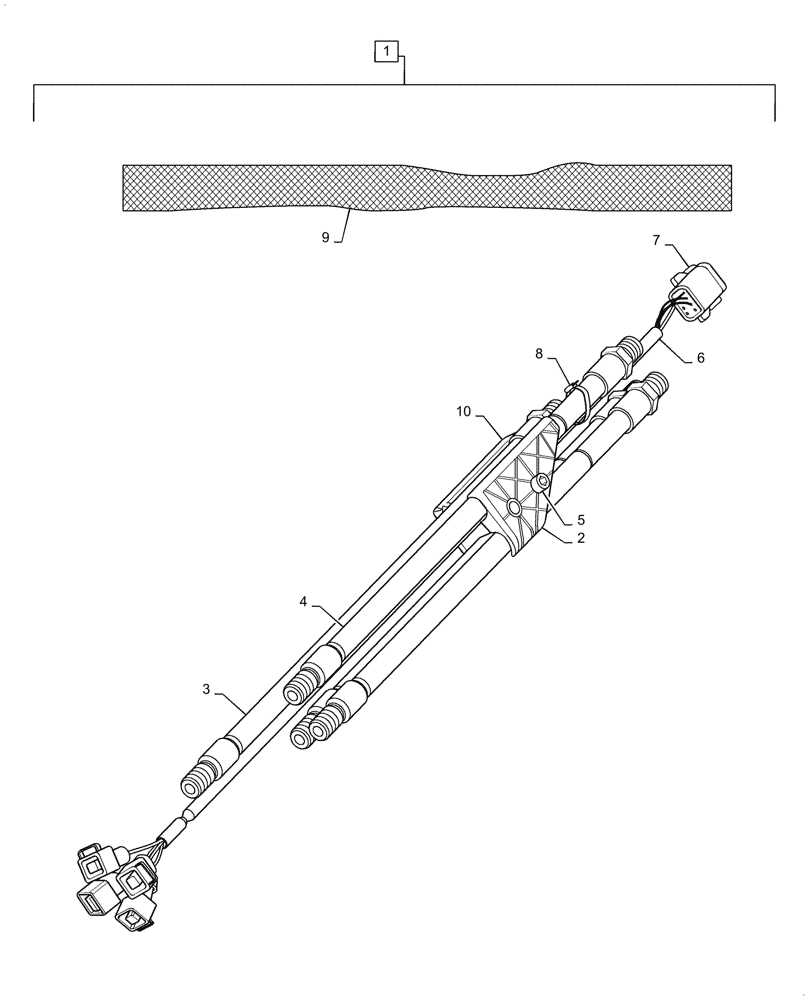

Запчасти Case IH L735 (35.310.030) - MAIN HOSE ASSY. (35) - HYDRAULIC SYSTEMS

1

LDR9031644

HOSE KIT

Main, Incl 2 - 10

1шт.

2

LDR5215051

CLAMP BRACKET

Outer

1шт.

3

LDR9032541

HYDRAULIC HOSE

1/2" OD x 3090mm L

1шт.

4

LDR9032513

HYDRAULIC HOSE

1/2" OD x 3050mm L

3шт.

5

LDR5004918

SCREW

M8 x 55mm L

1шт.

6

LDR5102202

ELECTRICAL WIRE

Main Hose Kit, 3600mm L

1шт.

7

LDR5101083

ELEC CONNECTOR

Main Control Valve

1шт.

8

LDR5033621

CABLE CLIP

Cable Tie

5шт.

9

LDR5033894

PROTECTIVE SLEEVE

850mm L

1шт.

10

LDR5215052

CLAMP BRACKET

Inner

1шт.
