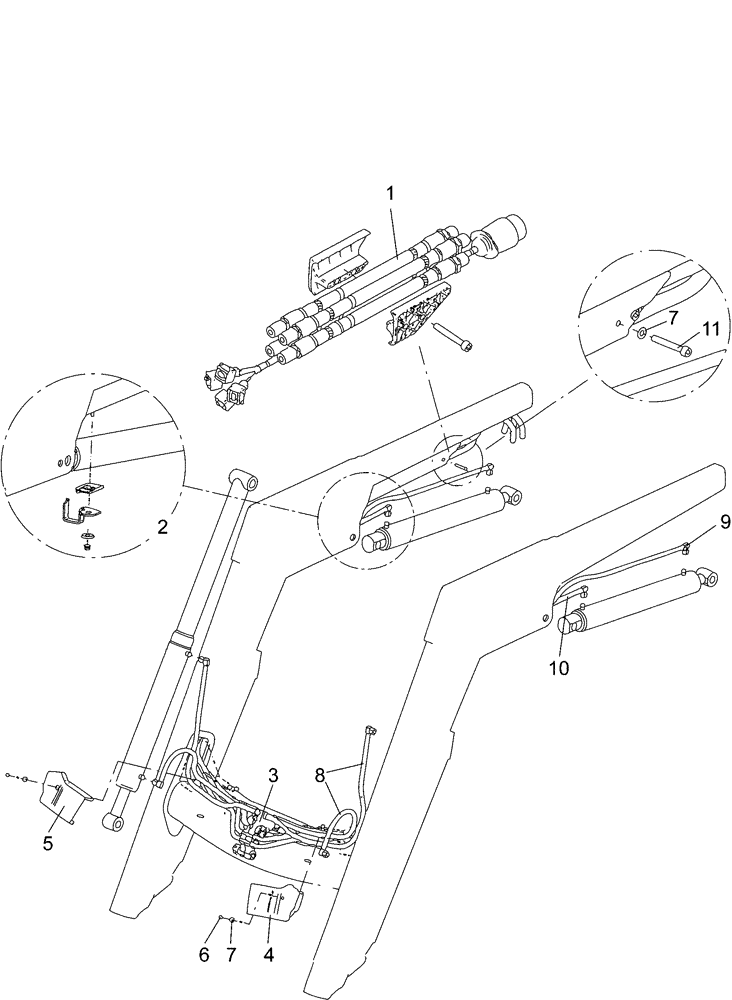

Запчасти Case IH L730 (35.100.AR[03]) - LOADER ARM HYDRAULICS - MSL (35) - HYDRAULIC SYSTEMS

1

LDR9032552

HYD CONNECTOR

Main Hose kit

1шт.

See Figure 08-04

1шт.

2

LDR5215167

CLAMP

1шт.

3

LDR10550510

BLOCK VALVE FOR REMO

1шт.

4

LDR5215063

COVER

Hose Clamp, LH

1шт.

5

LDR5215064

COVER

Hose Clamp, RH

1шт.

6

LDR5011910

NUT

2шт.

7

83925582

WASHER,7.94mm ID x 16mm OD x 1.52mm Thk

3шт.

8

LDR9031142

FLEXIBLE HOSE

4шт.

9

LDR9032534

HYDRAULIC HOSE

2шт.

10

LDR9032525

HYDRAULIC HOSE

2шт.

11

LDR5005128

SCREW

1шт.
