(39.100.010) - VAR - 730805006, 730651006 - SUBFRAME MOUNTING PARTS

Запчасти Case IH L730 (39.100.010) - VAR - 730805006, 730651006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

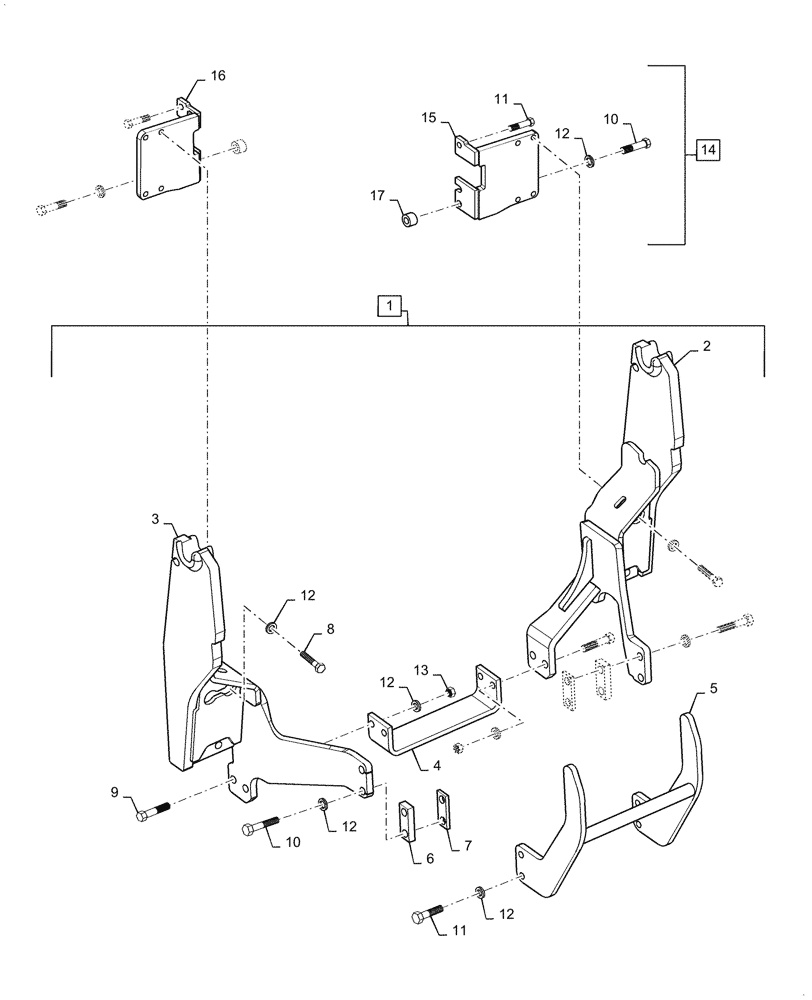

Схема запчастей Case IH L730 - (39.100.010) - VAR - 730805006, 730651006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING
4
1
13
12
2
12
8
11
16
15
10
9
10
7
14
12
3
6
12
17
5
12
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe Assy, Incl 2 - 13, Order Through Wholegoods 730805006

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10386906

SUPPORT

Corss Bar

1шт.

5

LDR10386912

GUARD

Grille

1шт.

6

LDR10385383

PLATE

Spacer, 20mm Thk

2шт.

7

LDR10360747

SPACER

5mm Thk

2шт.

8

LDR5002206

BOLT

M20 x 50mm L, Cl 8.8

8шт.

9

LDR5002205

SCREW

M20 x 60mm L, Cl 8.8

4шт.

10

LDR5002203

BOLT

M20 x 70mm L, Cl 8.8

8шт.

11

LDR5002202

SCREW

M20 x 40mm L, Cl 8.8

6шт.

12

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

24шт.

13

LDR5011559

LOCK NUT,M20

4шт.

14

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 10 - 12, 15 - 17, Order Through Wholegoods 730651006

1шт.

15

NSS

NOT SOLD SEPARAT

Bracket, LH, Incl in 14

1шт.

16

NSS

NOT SOLD SEPARAT

Bracket, RH, Incl in 14

1шт.

17

LDR9010002

SPACER

25mm Thk

4шт.
