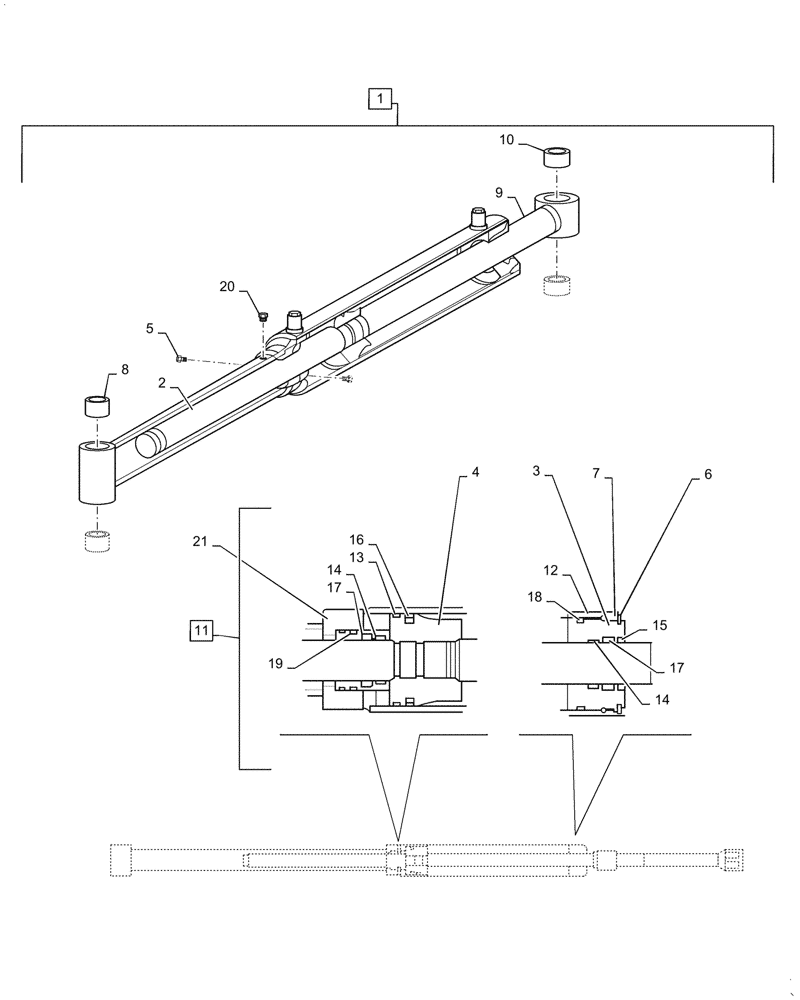

Запчасти Case IH L730 (35.723.030) - BUCKET LIFT CYLINDER - MSL (35) - HYDRAULIC SYSTEMS

1

LDR12712610

CYLINDER,Double Acting, 40mm Rod, 460mm Stroke

Bucket Lift, Incl 2 - 10, 12 - 21

1шт.

2

LDR12700915

ROD

Rear

1шт.

3

LDR12707011

BEARING

40mm ID x 70mm OD

1шт.

4

LDR12707012

PISTON

Hydraulic, 70mm OD

1шт.

5

LDR5005984

SCREW

Stop

2шт.

6

LDR5016621

RING

Retaining

1шт.

7

LDR5016669

RING

Retaining

1шт.

8

LDR5018515

BUSHING,30mm L

2шт.

9

LDR12712823

ROD

Piston

1шт.

10

LDR5018514

BUSHING,35mm L

2шт.

11

LDR5033712

SEAL KIT

Services 1, Contains 11 Seals, Incl 12 - 20

1шт.

12

NSS

NOT SOLD SEPARAT

O - Ring, 63.09mm OD x 3.53mm Thk, Incl in 1, 11

1шт.

13

NSS

NOT SOLD SEPARAT

Guide Ring, 65mm ID x 70mm OD x 5.5mm Thk, Incl in 1, 11

2шт.

14

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 7mm Thk, Incl in 1, 11

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper, 40mm ID x 50mm OD x 7mm Thk, Incl in 1, 11

1шт.

16

NSS

NOT SOLD SEPARAT

Piston Seal, 54.5mm ID x 70mm OD x 6.3mm Thk, Incl in 1, 11

2шт.

17

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 11

1шт.

18

NSS

NOT SOLD SEPARAT

Cover Seal, 64.6mm ID x 70mm OD x 6.2mm Thk, Incl in 1, 11

1шт.

19

NSS

NOT SOLD SEPARAT

Cover Seal, 53.4mm ID x 58mm OD x 4.1mm Thk, Incl in 1, 11

1шт.

20

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 11

1шт.

21

LDR12700017

GUIDE

Hydraulic Cylinder

1шт.
