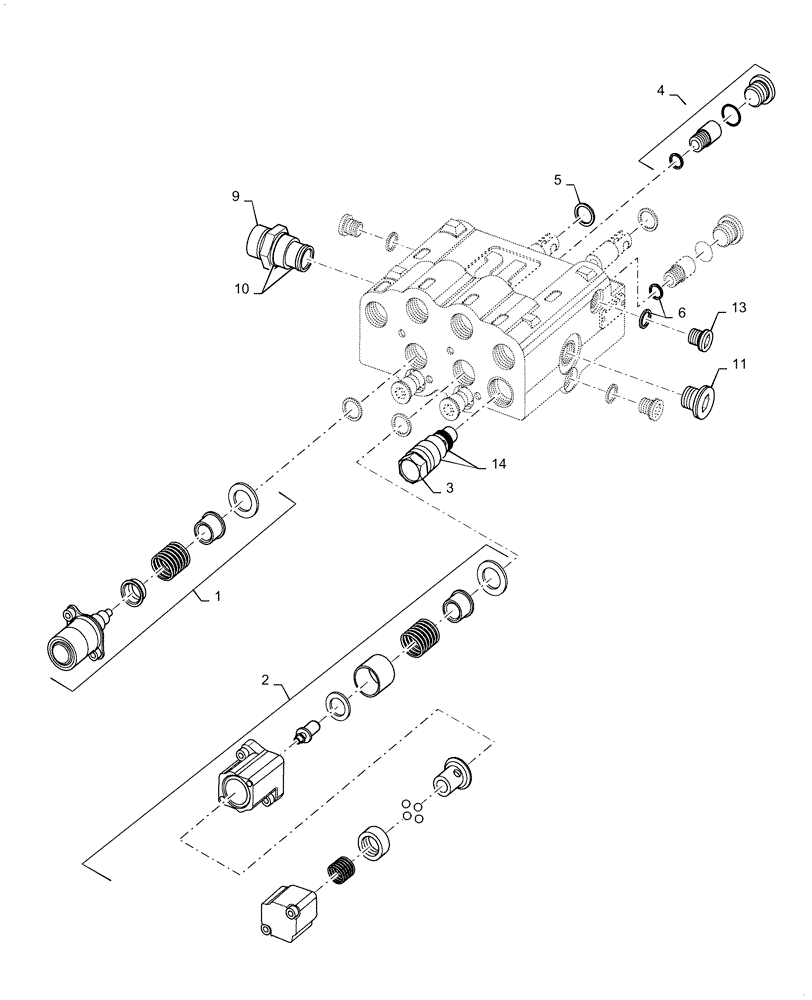

Запчасти Case IH L730 (35.355.AC[02]) - HYDRAULIC CONTROL VALVE (35) - HYDRAULIC SYSTEMS

LDR10550062

CONTROL VALVE

RMC 202, 1 1/16" JIC

1шт.

1

LDR10550063

CONTROL SLIDE

1шт.

2

LDR10550064

CONTROL SLIDE

1шт.

3

LDR10550065

VALVE

TBD 160

1шт.

4

LDR10550067

CHECK VALVE

MB01

2шт.

5

LDR10550068

SEAL KIT

15.88 x 2.62

2шт.

6

LDR10550069

SEAL KIT

1шт.

9

LDR10550072

ADAPTER

1 1/16" JIC, For Pressure Carry Over

1шт.

9

LDR521543

ADAPTER

1/2" BSP, For pressure Carry over

1шт.

10

LDR10550073

SEAL KIT

1шт.

11

LDR10550074

SEAL KIT

3A, 5 (x2), 6, 9, O - ring (pos 11)

1шт.

12

LDR5027463

ADAPTER

For Underside of Valve (Not Shown)

4шт.

13

LDR5034118

PLUG

1шт.

14

LDR10550066

SEAL KIT

Services 3

1шт.
