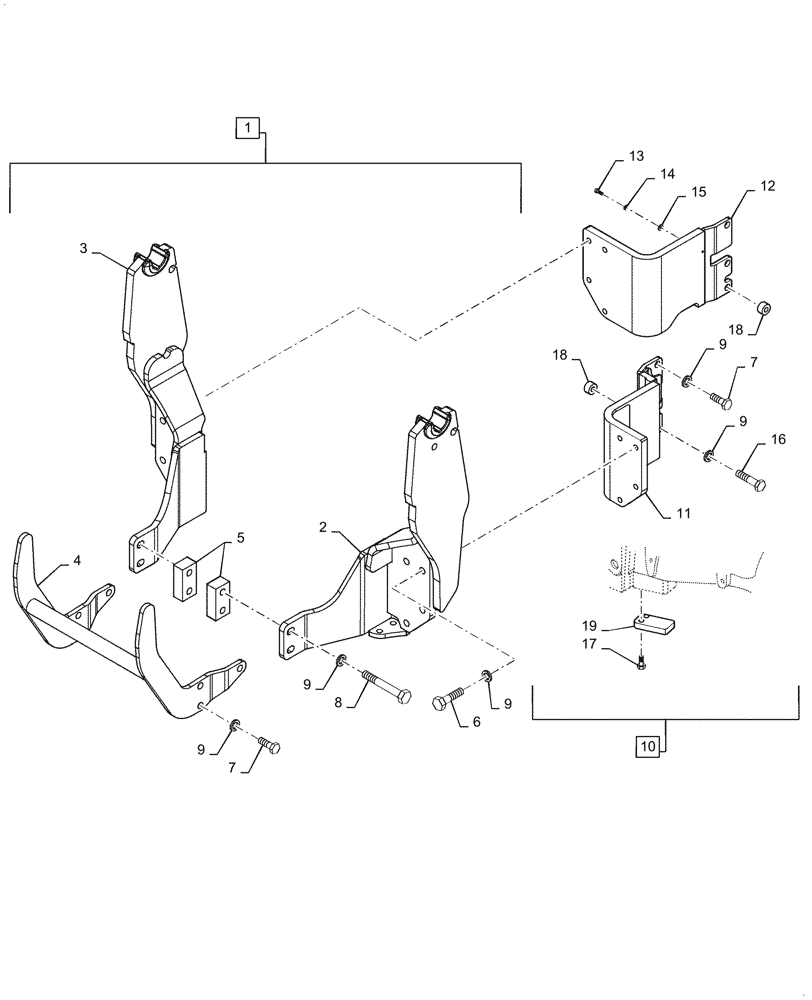

Запчасти Case IH L725 (39.100.020) - VAR - 717683006, 730656006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 9, Order Through Wholegoods 717683006

1шт.

Compatible Tractors - New Holland T4040/50

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10388027

GUARD

Grille

1шт.

5

LDR10386330

PLATE

Spacer, 40mm Thk

2шт.

6

LDR5002214

BOLT,Hex, M20 x 50mm, Cl 10.9

8шт.

7

LDR5002202

SCREW

M20 x 40mm L, Cl 8.8

6шт.

8

LDR5002212

BOLT,M20 x 90mm, Cl 10.9

4шт.

9

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

6шт.

10

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 7, 9, 11 - 19, Order Through Wholegoods 730656006

1шт.

Compatible Tractors - New Holland T4040/50

1шт.

11

NSS

NOT SOLD SEPARAT

Bracket, LH

1шт.

12

NSS

NOT SOLD SEPARAT

Bracket, RH

1шт.

13

LDR5002052

BOLT

M8 x 25mm L

1шт.

14

LDR5013404

WASHER

8.1mm ID x 14.8mm OD x 2mm Thk

1шт.

15

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

1шт.

16

LDR5002203

BOLT

M20 x 70mnm L, Cl 8.8

4шт.

17

LDR5005990

BOLT,M10 x 30mm, Cl 10.9

4шт.

18

LDR9010002

SPACER

Sleeve, 25mm Thk

4шт.

19

LDR10388930

SPACER

Plate, 10mm Thk

2шт.
