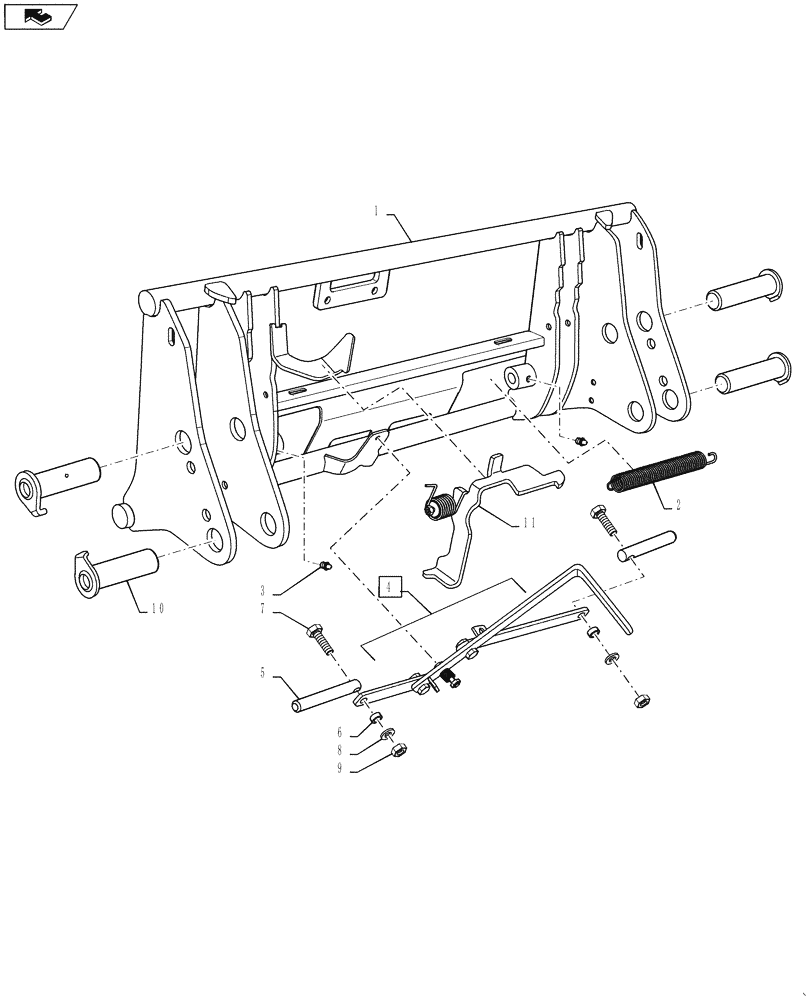

Запчасти Case IH L725 (37.120.AA) - TOOL CARRIER - LDR5220312 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

LDR5220285C

FRAME

Tool Carrier, L725, L735, L745, L755

1шт.

1

LDR5220287C

FRAME

Tool Carrier, L765, L775

1шт.

1

LDR5220288C

FRAME

Tool Carrier, L785

1шт.

2

LDR1101035

SPRING

1шт.

3

LDR5023005

LUBE NIPPLE

2шт.

4

LDR5220265

LEVER ASSY & KNOB

1шт.

5

LDR5219044

LOCK PIN

20mm

2шт.

6

LDR5219100

SPACER

2шт.

7

LDR5002971

SCREW

M6S 10 x 30, L725, L735, L745, L755

2шт.

8

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

BRB 10.5 x 22 x 2

2шт.

9

LDR5011554

NUT,M10

Locking, M10

2шт.

10

LDR9020071

PIVOT PIN

L725, L735, L745, L755

4шт.

10

LDR9020072

LOCK PIN

L765, L775, L785

4шт.

11

LDR4500321

LEVER

1шт.
