(35.701.010[02]) - LIFT ARM, HYDRAULIC CYLINDER - NSL

Запчасти Case IH L725 (35.701.010[02]) - LIFT ARM, HYDRAULIC CYLINDER - NSL (35) - HYDRAULIC SYSTEMS

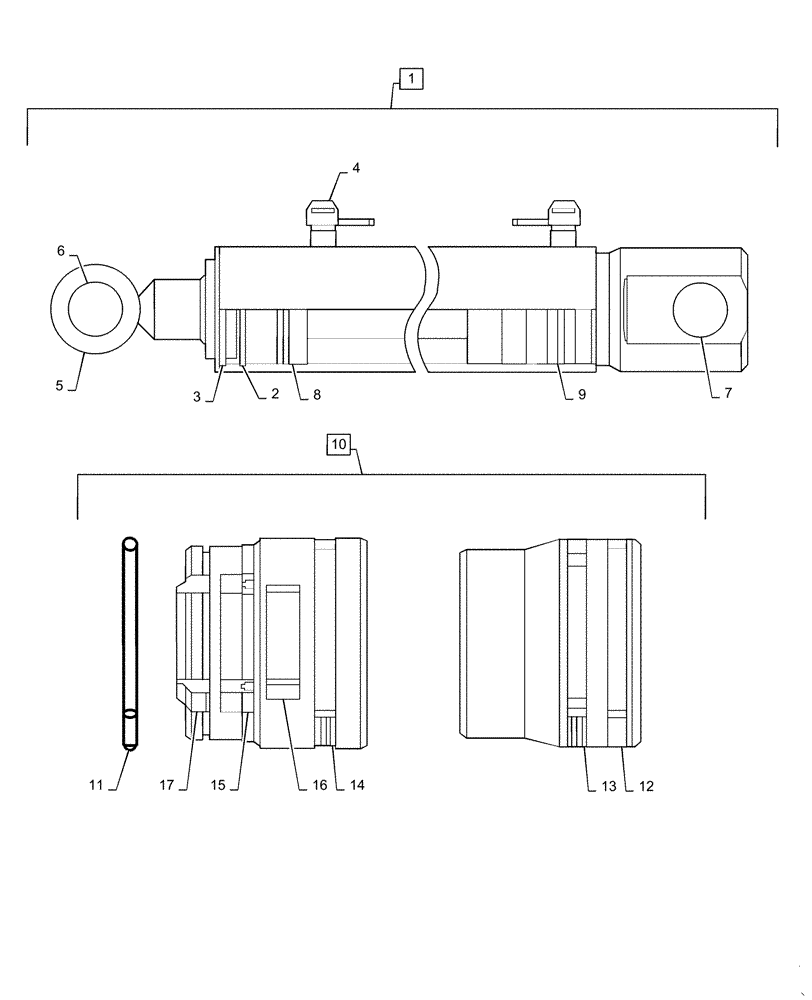

Схема запчастей Case IH L725 - (35.701.010[02]) - LIFT ARM, HYDRAULIC CYLINDER - NSL (35) - HYDRAULIC SYSTEMS
16
12
3
8
4
2
10
14
9
1
6
7
11
13
17
15
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR12721410

CYLINDER

Boom Lift, Incl 2 - 16

1шт.

2

LDR5016669

RING

Retaining

1шт.

3

LDR5016621

RING

Retaining

1шт.

4

LDR5026637

PLUG

Shipping Plug

2шт.

5

LDR12712223

FLUID COUPLING

Piston Rod

1шт.

6

LDR5018515

BUSHING,30mm L

4шт.

17

NSS

NOT SOLD SEPARAT

Wiper Seal, 40mm ID x 50mm OD x 7mm Thk, Incl in 1, 10

1шт.

8

LDR12707011

BEARING

Piston Rod

1шт.

9

LDR12707012

PISTON

Lift Cylinder

1шт.

10

LDR5033704

SEAL KIT

Services 1, Contains 7 Seals, Incl 7, 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

O - Ring, 63.09mm OD x 3.53mm Thk, Incl in 1, 10

1шт.

12

NSS

NOT SOLD SEPARAT

Guide Ring, 65mm ID x 70mm OD x 5.5mm Thk, Incl in 1, 10

1шт.

13

NSS

NOT SOLD SEPARAT

Piston Seal, 54mm ID x 70mm OD x 6.3mm Thk, Incl in 1, 10

1шт.

14

NSS

NOT SOLD SEPARAT

Cover Seal, 64.6mm ID x 70mm OD x 6.2mm Thk, Incl in 1, 10

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 10

1шт.

16

NSS

NOT SOLD SEPARAT

Guide Ring, 40mmID x 45mm OD x 9.7mm Thk, Incl in 1, 10

1шт.
