(35.600.AQ[10]) - HYDRAULIC CONTROL VALVE BREAKDOWN

Запчасти Case IH L725 (35.600.AQ[10]) - HYDRAULIC CONTROL VALVE BREAKDOWN (35) - HYDRAULIC SYSTEMS

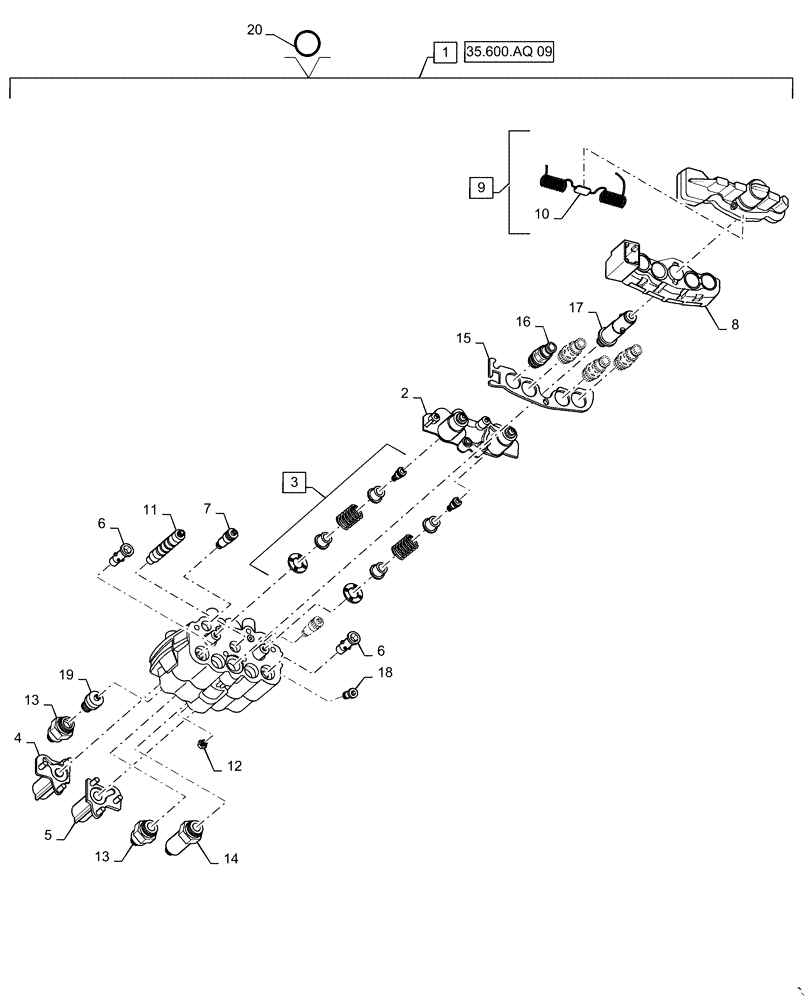

Схема запчастей Case IH L725 - (35.600.AQ[10]) - HYDRAULIC CONTROL VALVE BREAKDOWN (35) - HYDRAULIC SYSTEMS
35.600.aq 09
16
13
17
6
5
3
9
19
6
8
11
4
20
10
14
13
1
2
7
12
15
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR10570140

CONTROL VALVE

Electronic Controlled Valve

1шт.

2

LDR10570080

CAP

1шт.

3

LDR10570079

VALVE

Spool Control

1шт.

4

LDR10570082

CAP

LH

2шт.

5

LDR10570081

CAP

RH

1шт.

6

LDR10570071

COUPLING

Check Valve

2шт.

7

LDR10570069

COUPLING

Check Valve

2шт.

8

LDR10570096

CAP

W/Marking

1шт.

9

LDR5034232

DUST CAP

1шт.

10

LDR10570094

SECURING STRAP

Strap (Included in Ref 9)

1шт.

11

LDR10570097

COUPLING

1шт.

12

LDR5028093

COUPLING

Plug

1шт.

13

LDR5028086

COUPLING

1шт.

14

LDR5028087

ADAPTER

Long Coupling

1шт.

15

LDR10570088

COVER PLATE

1шт.

16

LDR5044956

QUICK MALE COUPLING

1шт.

17

LDR10570078

COUPLING

Adapter

1шт.

18

LDR10570135

CHECK VALVE

1шт.

19

LDR10570188

CARTRIDGE

Heating

1шт.

20

LDR5040067

SEAL KIT

Services 1, Contains 15 Seals

1шт.
