(35.600.AQ[02]) - VAR - 713617006 - 2 FUNCTION HYDRAULIC VALVE KIT - HYDRAULIC CONNECTION FOR FARMALL

Запчасти Case IH L725 (35.600.AQ[02]) - VAR - 713617006 - 2 FUNCTION HYDRAULIC VALVE KIT - HYDRAULIC CONNECTION FOR FARMALL (35) - HYDRAULIC SYSTEMS

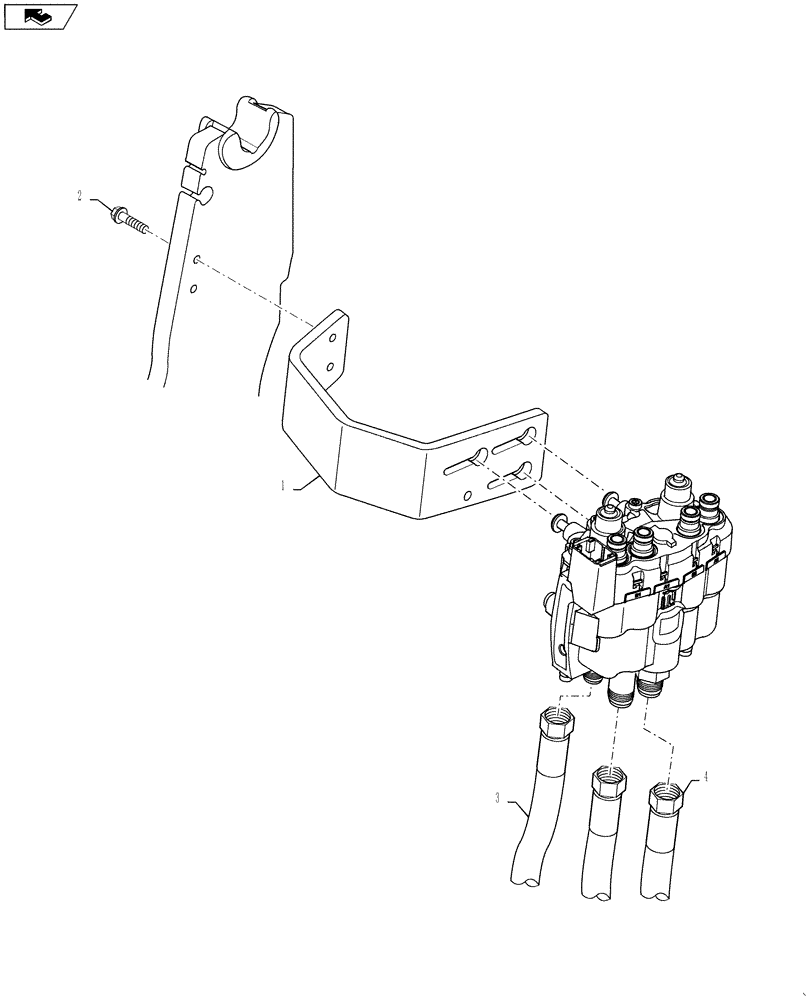

Схема запчастей Case IH L725 - (35.600.AQ[02]) - VAR - 713617006 - 2 FUNCTION HYDRAULIC VALVE KIT - HYDRAULIC CONNECTION FOR FARMALL (35) - HYDRAULIC SYSTEMS
1
home
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR10391712

BRACKET

Support, Control Valve

1шт.

2

LDR5005999

SCREW,M10 x 45mm

M6SF M10 x 45 (8.8)

2шт.

3

LDR9031590

HYDRAULIC HOSE

1-1/16"-1 JIC x 2300

1шт.

4

LDR9031589

HYDRAULIC HOSE

1-1/16"-1 JIC x 2150

2шт.

5

LDR5033606

CABLE TIE

(Not Shown)

6шт.

Выбрано товаров: 5
