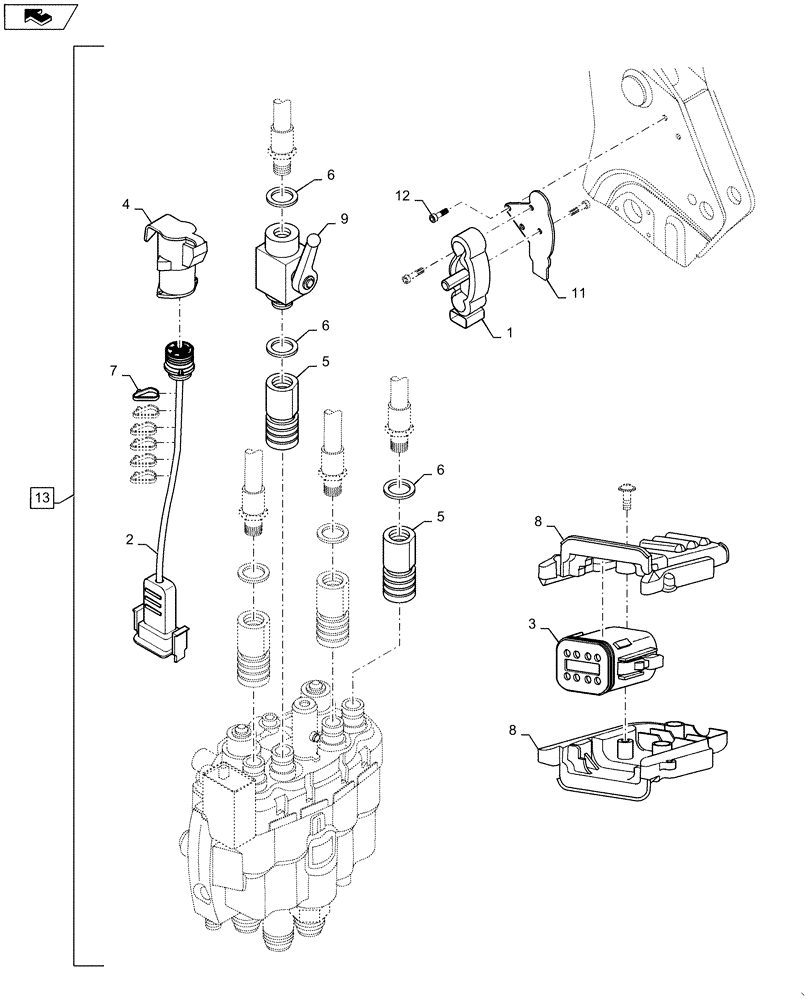

Запчасти Case IH L725 (35.310.AP[09]) - VAR - 713631006 - 4 COUPLER ADAPT KIT 7 PIN, FLAT FACED, CONVERSION FROM L700 SERIES TO L705 SERIES LCS SYSTEM (35) - HYDRAULIC SYSTEMS

1

LDR5034234

SUPPORT

1шт.

2

LDR5102123

CABLE

1шт.

3

LDR5101083

ELEC CONNECTOR

1шт.

4

LDR5101059

ELEC CONNECTOR

1шт.

5

LDR5044976

COUPLING

4шт.

6

LDR5013853

WASHER

5шт.

7

LDR5033621

CABLE CLIP

6шт.

8

LDR5103054

COVER

1шт.

9

LDR5033898

VALVE

1шт.

10

LDR5033992

SWITCH

1шт.

11

LDR5034122

BRACKET

1шт.

12

LDR5004061

SCREW

2шт.

13

NS

NOT SERVICED

Order Wholegoods 713631006

1шт.
