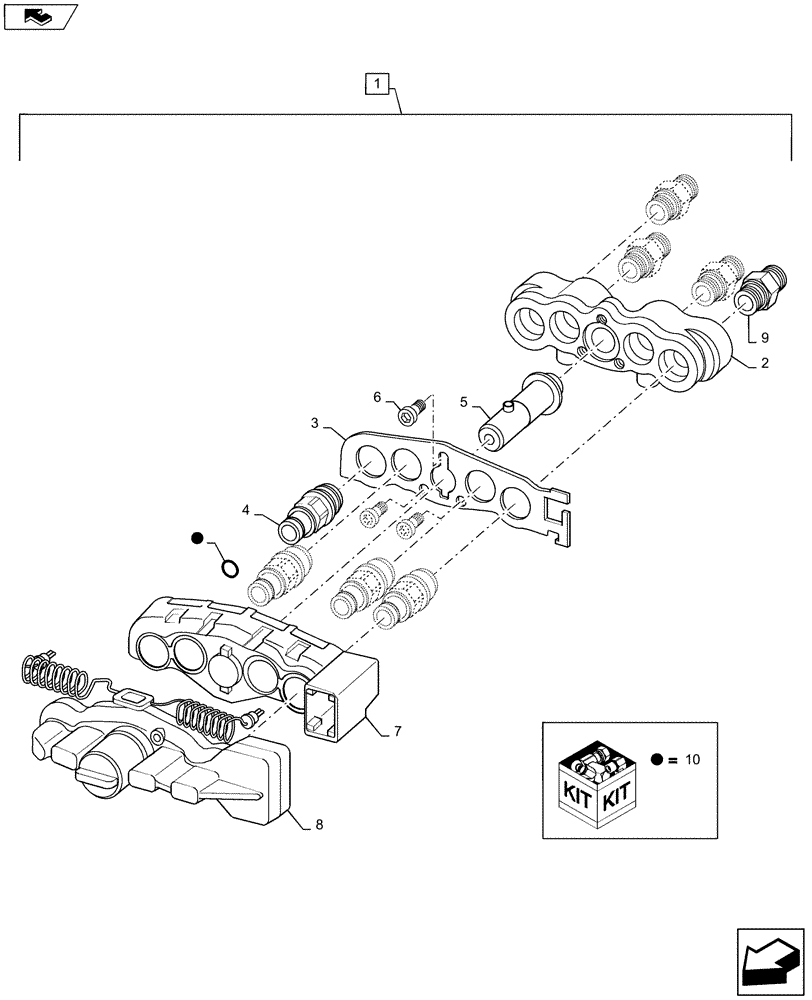

Запчасти Case IH L725 (35.310.AP[05]) - VAR - 713621006 - MC-4 COUPLING COMPONENTS (35) - HYDRAULIC SYSTEMS

1

NS

NOT SERVICED

Incl 2 - 9, Order Through Wholegoods P/N 713621006

1шт.

2

LDR10570076

HOUSING

Connection Block, MC4 J. 7/8"

1шт.

3

LDR10570110

PLATE

Cover

1шт.

4

LDR5044956

QUICK MALE COUPLING

4шт.

5

LDR10570078

COUPLING

Adapter Multi-Coupling

1шт.

6

LDR5006019

SCREW

Screw, 8 x 16 FZB

3шт.

7

LDR10570096

CAP

W/Marking

1шт.

8

LDR5034232

DUST CAP

Protective Cover

1шт.

9

LDR5028094

COUPLING

JIC, 7/8" - 7/8"

4шт.

10

LDR5045426

O-RING

3 Pieces, (1) O-Ring, (2) Seals

1шт.

11

LDR5040067

SEAL KIT

non illustrated

1шт.
