(82.300.AQ[13]) - VAR - 730405006 - SQUARE BALE FORK 55"

Запчасти Case IH L725 (82.300.AQ[13]) - VAR - 730405006 - SQUARE BALE FORK 55" (82) - FRONT LOADER & BUCKET

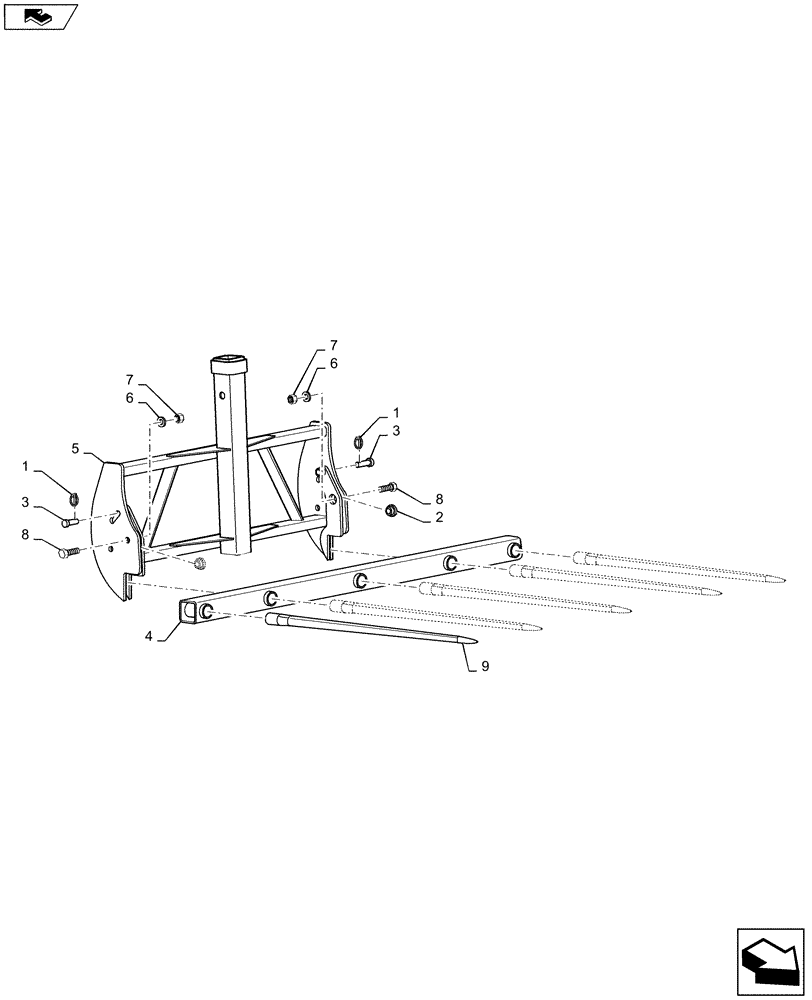

Схема запчастей Case IH L725 - (82.300.AQ[13]) - VAR - 730405006 - SQUARE BALE FORK 55" (82) - FRONT LOADER & BUCKET
3
1
home
4
8
2
6
6
3
5
7
8
7
9
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Pin, Incl In 730405006, Order from Wholegoods

2шт.

2

NSS

NOT SOLD SEPARAT

Bushing, Incl In 730405006, Order from Wholegoods

2шт.

3

NSS

NOT SOLD SEPARAT

Pin, Incl In 730405006, Order from Wholegoods

2шт.

4

NSS

NOT SOLD SEPARAT

Rail, 1900mm, Incl In 730405006, Order from Wholegoods

1шт.

4

NSS

NOT SOLD SEPARAT

Rail, 1400mm, Incl In 730405006, Order from Wholegoods

1шт.

5

NSS

NOT SOLD SEPARAT

Frame, Incl In 730405006, Order from Wholegoods

1шт.

6

NSS

NOT SOLD SEPARAT

Washer, Incl In 730405006, Order from Wholegoods

2шт.

7

NSS

NOT SOLD SEPARAT

Nut, Incl In 730405006, Order from Wholegoods

2шт.

8

NSS

NOT SOLD SEPARAT

Bolt, Incl In 730405006, Order from Wholegoods

2шт.

9

LDR20540635

TINE

1250mm, With 75" Fork

5шт.

9

LDR20540635

TINE

1250mm, With 55" Fork

2шт.
