(39.100.AJ[05]) - VAR - 715782006 - REAR UPRIGHT MOUNTING BRACKET FOR JX55 - 65, JX75 - 95, FARMALL 70, 80, 90, 95 TRACTOR

Запчасти Case IH L720 (39.100.AJ[05]) - VAR - 715782006 - REAR UPRIGHT MOUNTING BRACKET FOR JX55 - 65, JX75 - 95, FARMALL 70, 80, 90, 95 TRACTOR (39) - FRAMES AND BALLASTING

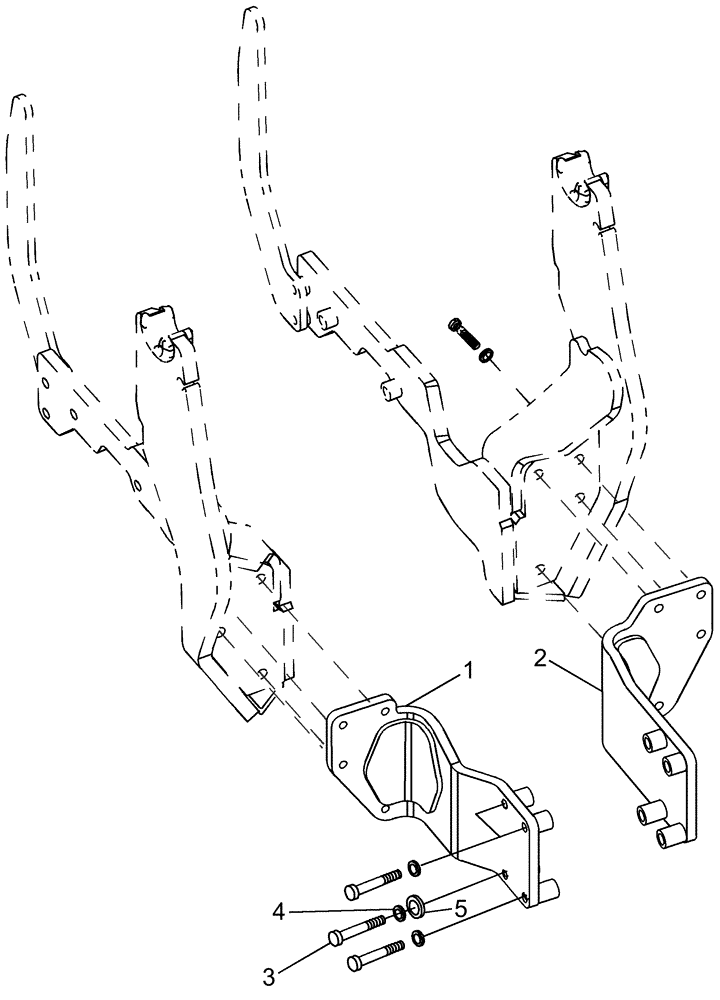

Схема запчастей Case IH L720 - (39.100.AJ[05]) - VAR - 715782006 - REAR UPRIGHT MOUNTING BRACKET FOR JX55 - 65, JX75 - 95, FARMALL 70, 80, 90, 95 TRACTOR (39) - FRAMES AND BALLASTING
3
4
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR10388579

BRACKET

LH

1шт.

2

LDR10387068

BRACKET

RH

1шт.

3

LDR5002758

SCREW,Hex, M16 x 1.5 x 100mm, Cl 8.8

2шт.

4

LDR5013105

WASHER

2шт.

5

LDR5013411

SPRING WASHER

2шт.

Выбрано товаров: 5
