(39.100.AJ[04]) - VAR - 717682006 - REAR UPRIGHT MOUNTING BRACKET FOR JX55, JX95, FARMALL 70, 80, 90, 95

Запчасти Case IH L720 (39.100.AJ[04]) - VAR - 717682006 - REAR UPRIGHT MOUNTING BRACKET FOR JX55, JX95, FARMALL 70, 80, 90, 95 (39) - FRAMES AND BALLASTING

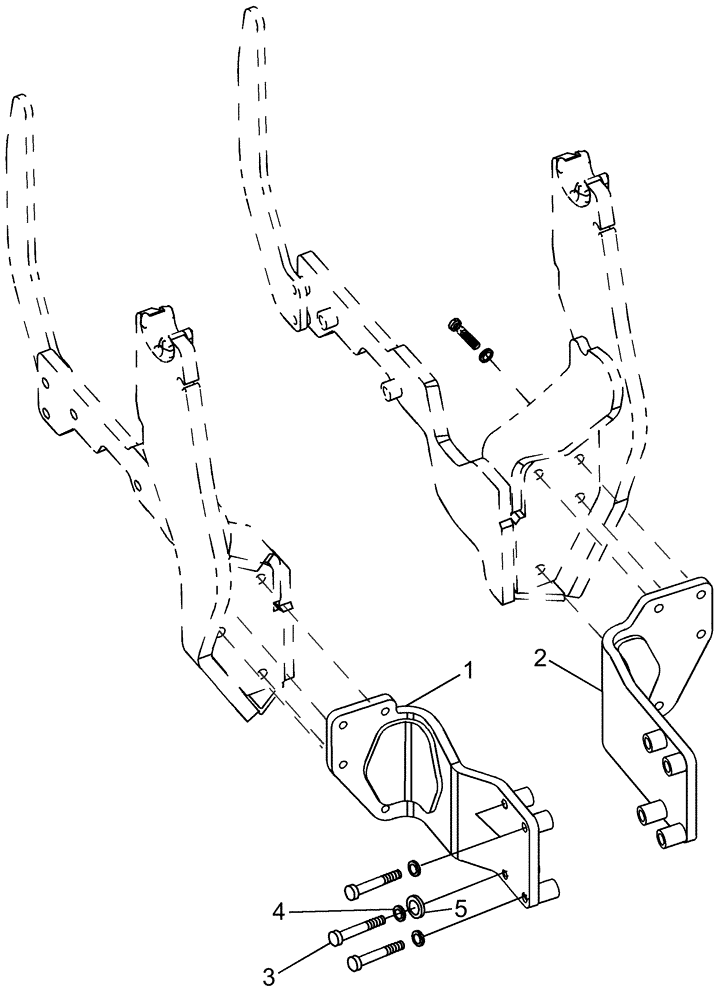

Схема запчастей Case IH L720 - (39.100.AJ[04]) - VAR - 717682006 - REAR UPRIGHT MOUNTING BRACKET FOR JX55, JX95, FARMALL 70, 80, 90, 95 (39) - FRAMES AND BALLASTING
3
5
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR10388579

BRACKET

LH

1шт.

2

LDR10387068

BRACKET

RH

1шт.

3

LDR5002758

SCREW,Hex, M16 x 1.5 x 100mm, Cl 8.8

M16 x 1,5 x 100 (8.8)

2шт.

4

LDR5013105

WASHER

BRB 17 x 30 x 3

2шт.

5

LDR5013411

SPRING WASHER

FBB 16,2 x 27,4 x 3,5

2шт.
