(39.100.AJ[03]) - VAR - 715788026 - REAR UPRIGHT MOUNTING BRACKET FOR JX55, JX95 TRACTOR

Запчасти Case IH L720 (39.100.AJ[03]) - VAR - 715788026 - REAR UPRIGHT MOUNTING BRACKET FOR JX55, JX95 TRACTOR (39) - FRAMES AND BALLASTING

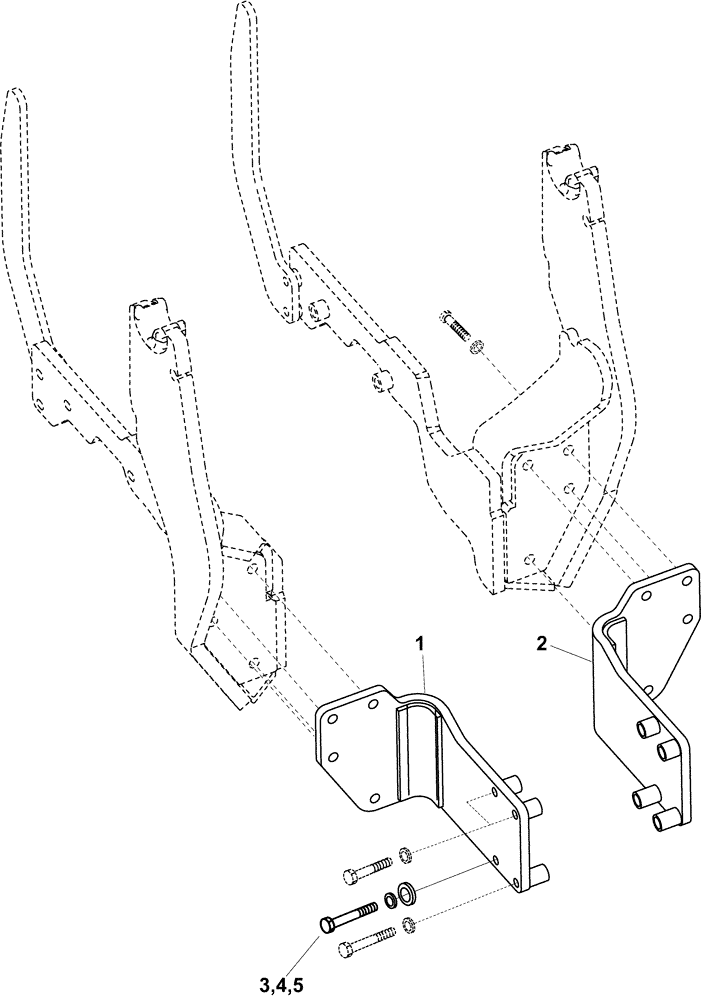

Схема запчастей Case IH L720 - (39.100.AJ[03]) - VAR - 715788026 - REAR UPRIGHT MOUNTING BRACKET FOR JX55, JX95 TRACTOR (39) - FRAMES AND BALLASTING
1
3
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87314860

SUPPORT

LH

1шт.

2

87314861

BRACKET

RH

1шт.

3

87010560

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

2шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

5

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

2шт.
