(39.100.040) - VAR - 717683006, 717685006 - SUBFRAME, MOUNTING PARTS

Запчасти Case IH L720 (39.100.040) - VAR - 717683006, 717685006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

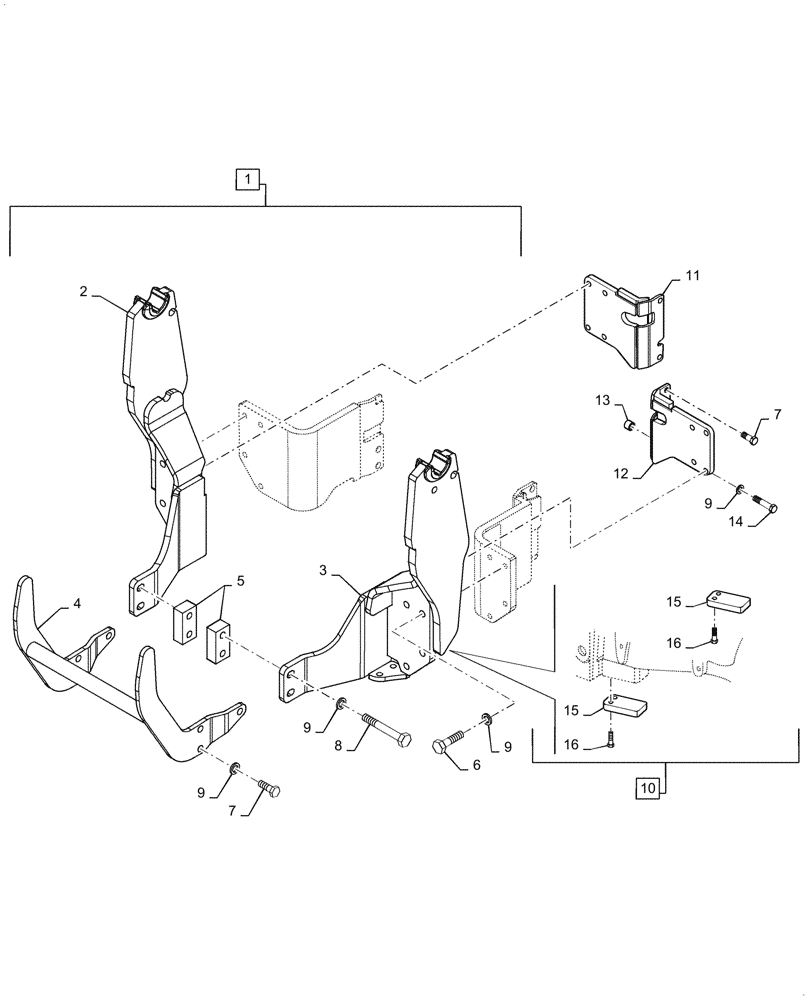

Схема запчастей Case IH L720 - (39.100.040) - VAR - 717683006, 717685006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING
9
7
7
4
12
3
5
11
9
8
9
14
13
16
10
1
6
15
2
15
9
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 9, Order Through Wholegoods 717683006

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

4

LDR10388027

GUARD

Grille

1шт.

5

LDR10386330

PLATE

Spacer

2шт.

6

LDR5002214

BOLT,Hex, M20 x 50mm, Cl 10.9

8шт.

7

LDR5002202

SCREW

M20 x 40mm L, CL 8.8

6шт.

8

LDR5002212

BOLT,M20 x 90mm, Cl 10.9

4шт.

9

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

20шт.

10

NSS

NOT SOLD SEPARAT

Rear Mounting Brackets, Incl 7, 9, 11 - 16, Order Through Wholegoods 717685006

1шт.

11

NSS

NOT SOLD SEPARAT

Bracket, RH, Incl in 10

1шт.

12

NSS

NOT SOLD SEPARAT

Bracket, LH, Incl in 10

1шт.

13

LDR9010002

SPACER

Sleeve

4шт.

14

LDR5002203

BOLT

M20 x 70mm L, Cl 8.8

4шт.

15

LDR10388930

SPACER

Plate

2шт.

16

LDR5005990

BOLT,M10 x 30mm, Cl 10.9

4шт.
