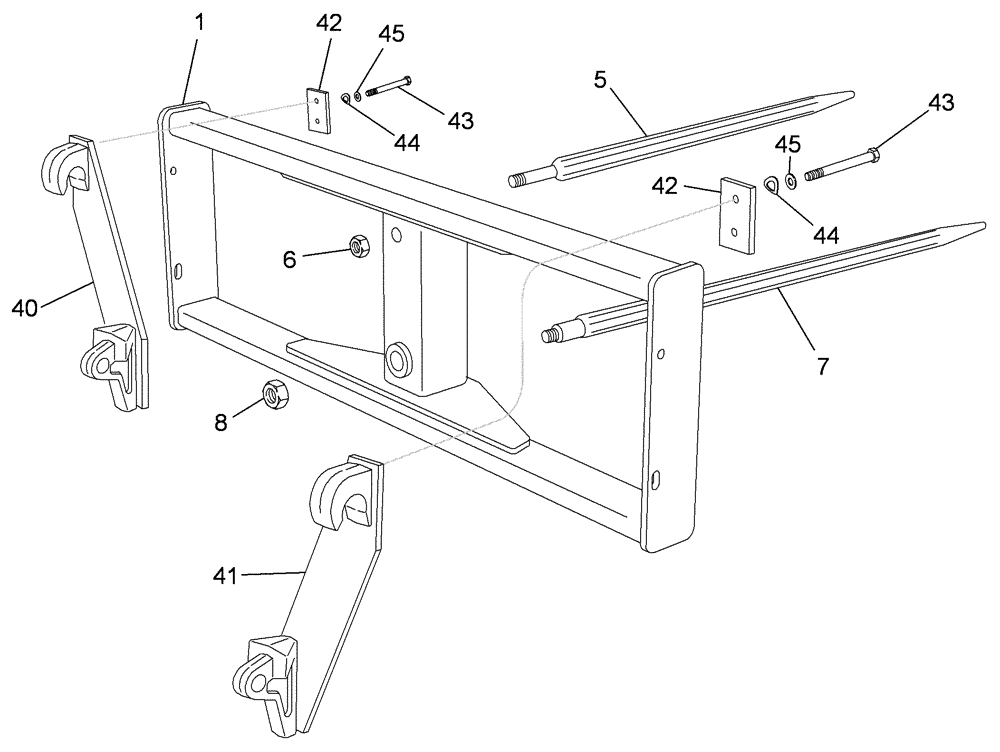

Запчасти Case IH L720 (82.300.AQ[14]) - VAR - 717485016 - BALE SPIKE (82) - FRONT LOADER & BUCKET

1

LDR11251688

FRAMEWORK

1шт.

5

LDR809217

TINE,810mm

810 mm

1шт.

6

LDR5011066

NUT

M6M 20 x 1,5

1шт.

7

LDR5068004

TINE,1250mm

1250 mm

1шт.

8

LDR5011901

NUT

1шт.

40

NSS

NOT SOLD SEPARAT

SUPPORT, LH. Order LDR11251688

1шт.

41

NSS

NOT SOLD SEPARAT

SUPPORT, RH. Order LDR11251688

1шт.

42

LDR830325

MOUNTING PLATE

4шт.

43

LDR5002211

SCREW

M6S 20 x 120

8шт.

44

LDR5013413

WASHER

FBB 20,2

8шт.

45

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

BRB 21 x 37

8шт.
