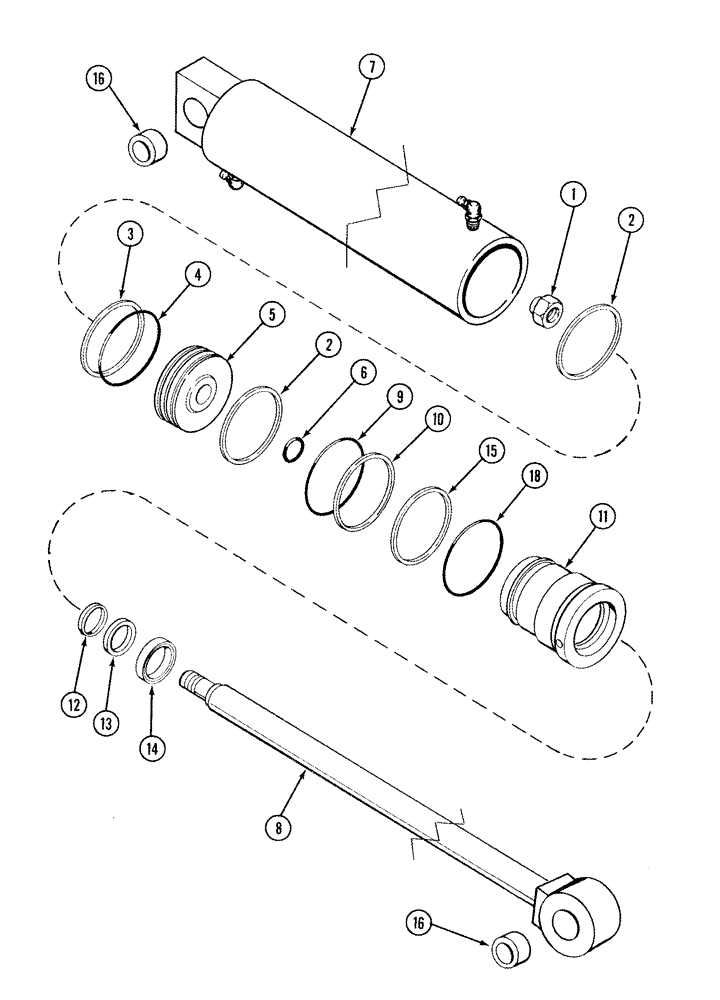

Запчасти Case IH L705 (08-02[01]) - CYLINDER ASSY LIFT L705 (08) - HYDRAULICS

82.55 mm (3.25 in) ID x 724 mm (28.5 in) strk

1шт.

338106A2

CYLINDER,Double Acting, 44.45mm Rod, 723.9mm Stroke

82.5 ID x 724 mm strk, Consists Of 1-18

2шт.

1

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

348471A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

11/16 fc sl x 14 orb, Body

1шт.

8

338142A1

ROD

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

11

348462A1

HEAD

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

16

318872A1

BUSHING

4шт.

17

NSS

NOT SOLD SEPARAT

Plug

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

352543A1

SEAL KIT

Consists Of 1-4,6,9,10,12-15,18

1шт.
