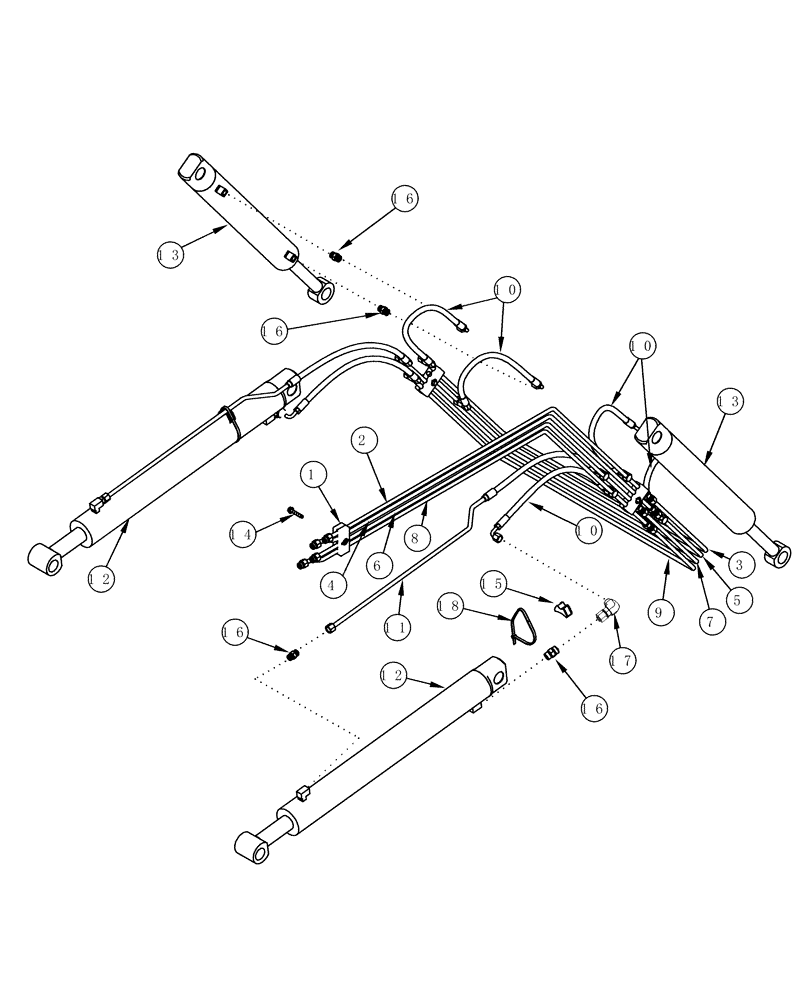

Запчасти Case IH L705 (08-01) - HYDRAULICS LOADER FRAME (08) - HYDRAULICS

1

324067A1

BRACKET

4шт.

2

348049A1

HYD TUBE,0.5" OD, 1467.7, 560.2 mm Length

Bucket Dump #1

1шт.

3

348050A1

HYD TUBE,0.5" OD, 945, 614.2 mm Length

Bucket Dump #2

1шт.

4

348051A1

HYD TUBE,0.5" OD, 1517.5, 602.1 mm Length

Bucket Rollback #1

1шт.

5

348052A1

HYD TUBE

Bucket Rollback #2

1шт.

6

348053A1

HYD TUBE,0.5" OD, 1485.9, 540.9 mm Length

Lower #1

1шт.

7

348054A1

HYD TUBE,0.5" OD, 945, 718.2 mm Length

Lower #2

1шт.

8

348055A1

HYD TUBE

Raise #1

1шт.

9

348056A1

HYD TUBE,0.5" OD, 945, 629.1 mm Length

Raise #2

1шт.

10

345381A1

HOSE,9.53mm ID x 609.6mm L, SAE 100R17

610 mm (24 in)

6шт.

11

324949A1

TUBE

2шт.

12

338106A2

CYLINDER,Double Acting, 44.45mm Rod, 723.9mm Stroke

82.5 ID x 724 mm strk, L705(2), Lift, See Figure 8-02.01

1шт.

12

338110A2

CYLINDER

89 ID x 747 mm strk, 755(2), Lift, See Figure 8-02.02

1шт.

13

338109A2

CYLINDER,Double Acting, 38.1mm Rod, 450.85mm Stroke

76 ID x 451 mm strk, L705(2), Bucket, See Figure 8-03.01

1шт.

13

338111A2

CYLINDER,Double Acting, 38.1mm Rod, 495.3mm Stroke

82.5 ID x 495 mm strk, L755(2), Bucket, See Figure 8-03.02

1шт.

14

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3шт.

15

D38648

BLOCK

2шт.

16

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

8шт.

17

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 711 mm (28 in)

2шт.
