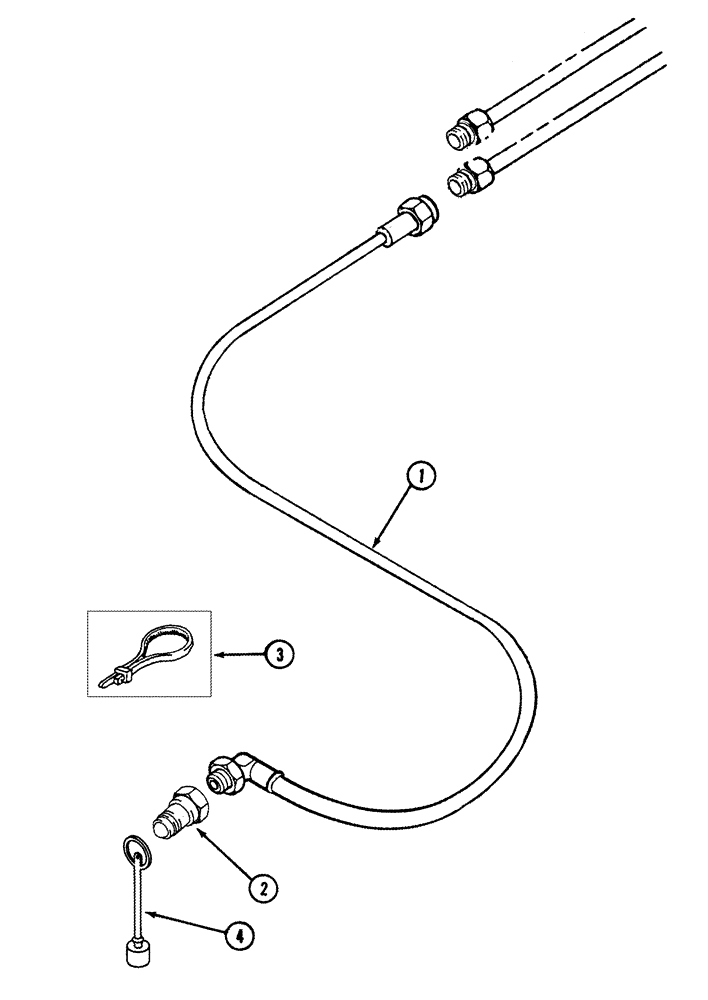

Запчасти Case IH L705 (08-11) - HYDRAULICS REAR MOUNT (08) - HYDRAULICS

1

327204A2

HOSE

5435 mm (214 in)

1шт.

2

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

2a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated, Used with Ref 2

1шт.

3

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" TIE

4шт.

4

333717A1

CAP

Female, Blue

1шт.

4

333718A1

CAP

Female, Orange

1шт.

4

333719A1

CAP

Female, Yellow

1шт.

4

333720A1

CAP

Female, Black

1шт.

4

333721A1

CAP

Female, Red

1шт.

4

333722A1

CAP

Female, Green

1шт.
