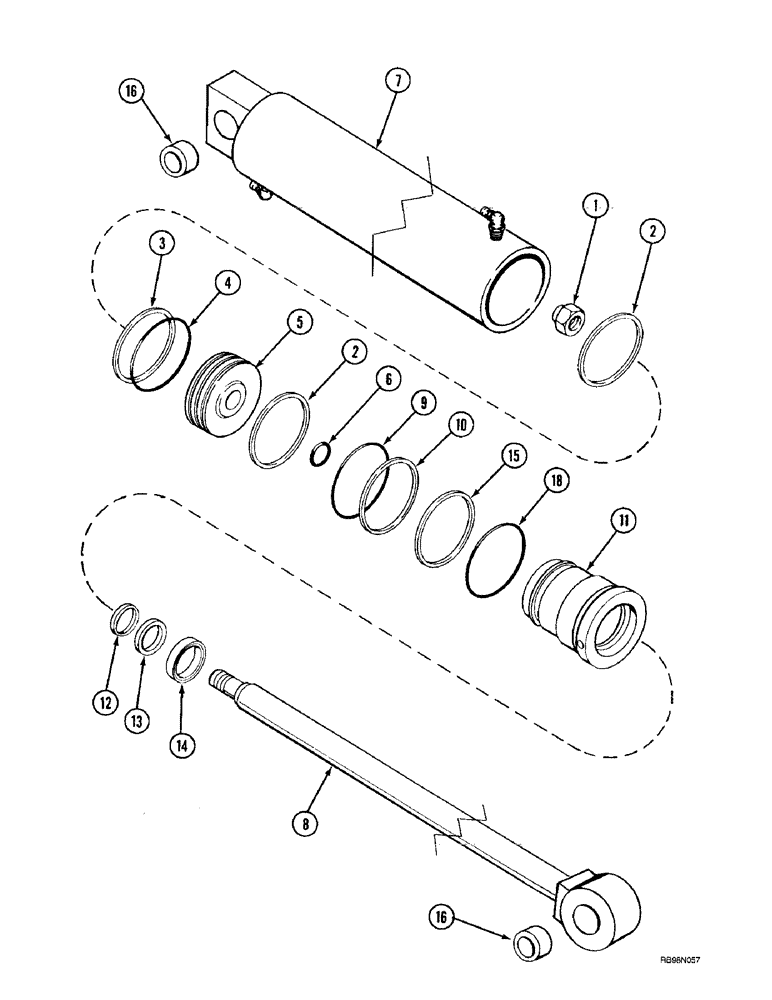

Запчасти Case IH L700 (8-44) - CYLINDER ASSY - LIFT (L700), 82.55 MM (3.25 IN) ID X 724 MM (28.5 IN) STRK (08) - HYDRAULICS

338106A1

CYLINDER

ASSY., 82.5 ID x 724 mm strk Consists Of : 1-18

2шт.

1

NSS

NOT SOLD SEPARAT

NUT lock

1шт.

2

NSS

NOT SOLD SEPARAT

RING wear

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

348471A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

338123A1

TUBE

BODY

1шт.

8

338142A1

ROD

PISTON

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

RING backup

1шт.

11

348462A1

HEAD

CYLINDER

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER

1шт.

15

NSS

NOT SOLD SEPARAT

RING wear

1шт.

16

318872A1

BUSHING

4шт.

17

NSS

NOT SOLD SEPARAT

PLUG

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

352543A1

SEAL KIT

SEALS Consists Of : 1-4, 6, 9, 10, 12-15 and 18

1шт.
