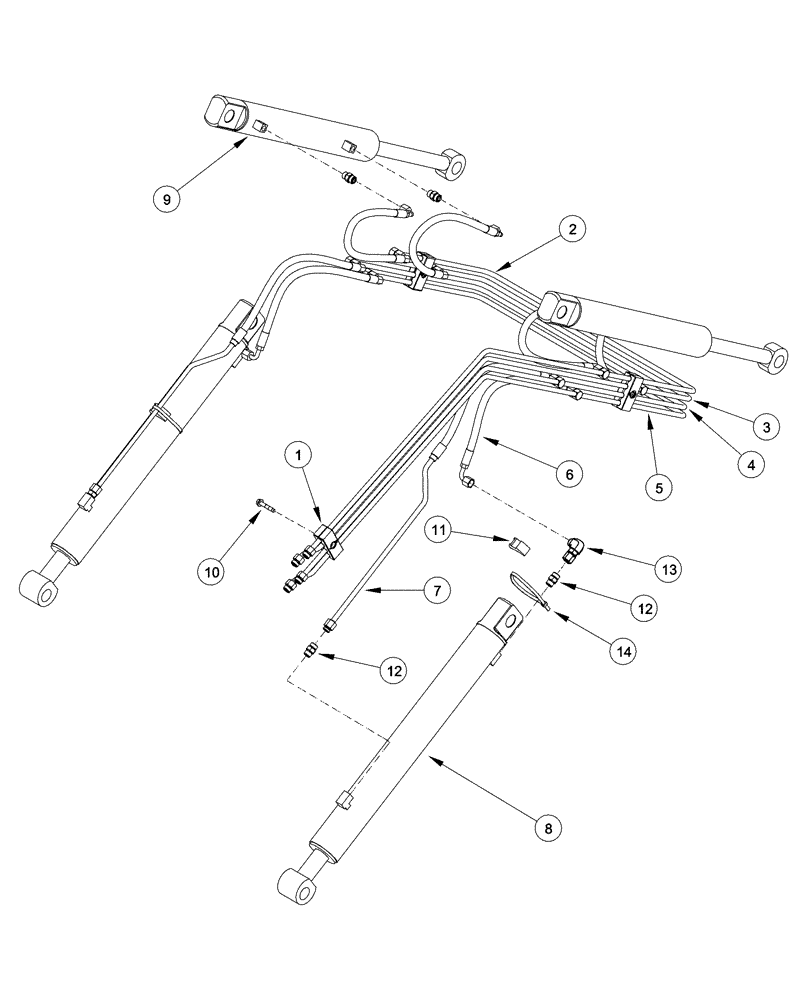

Запчасти Case IH L655 (08-01) - HYDRAULICS LOADER FRAME (08) - HYDRAULICS

1

324067A1

BRACKET

4шт.

2

349513A1

HYD TUBE

Bucket Dump

1шт.

3

349514A1

HYD TUBE

Bucket Rollback

1шт.

4

349515A1

HYD TUBE

Lower

1шт.

5

349516A1

HYD TUBE

Raise

1шт.

6

345381A1

HOSE,9.53mm ID x 609.6mm L, SAE 100R17

610 mm (24 in)

8шт.

7

324949A1

TUBE

2шт.

8

338104A2

CYLINDER,Double Acting, 44.45mm Rod, 698.5mm Stroke

76 ID x 698.5 mm strk, L605(2), Lift, See Figure 8-02.01

1шт.

8

338106A2

CYLINDER,Double Acting, 44.45mm Rod, 723.9mm Stroke

82.5 ID x 724 mm strk, L655(2), Lift, See Figure 8-02.02

1шт.

9

338105A2

CYLINDER,Double Acting, 38.1mm Rod, 450.85mm Stroke

76 ID x 451 mm stk, L605(2), Bucket, See Figure 8-03.01

1шт.

9

338107A1

CYLINDER

ASSY., 82.5 ID x 495 mm strk #L605(2) bucket See Figure 8-03.03

1шт.

9

338107A2

CYLINDER

ASSY., 82.5 ID x 495 mm strk, L655(2), Bucket, See Figure 8-03.02

1шт.

10

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3шт.

11

D38648

BLOCK

2шт.

12

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

8шт.

13

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 711 mm (28 in)

2шт.
