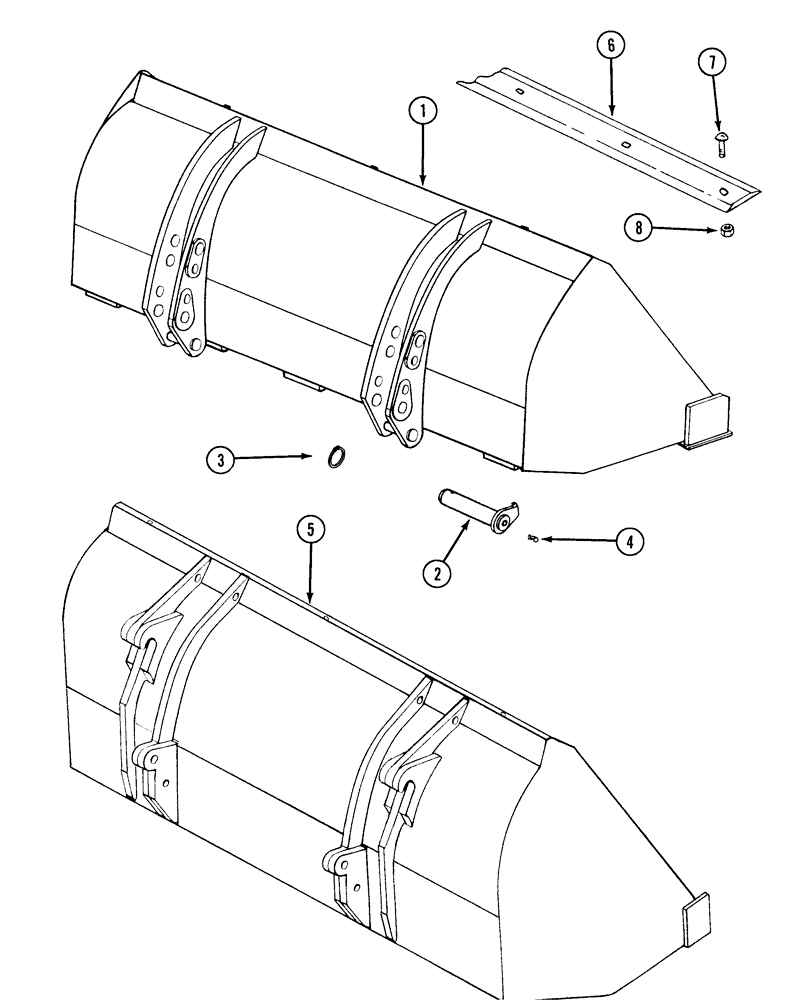

Запчасти Case IH L655 (09-07) - MATERIAL BUCKET HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

Standard Attach Type

1шт.

1

323266A2

BUCKET

72 in

1шт.

1

323268A2

BUCKET

84 in

1шт.

1

318737A2

BUCKET

96 in

1шт.

2

349057A1

PIN

4шт.

3

103-16150

SNAP RING,#150, Ext

4шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

4шт.

Quick Attach Type

1шт.

5

318708A2

BUCKET

72 in

1шт.

5

318726A2

BUCKET

84 in

1шт.

5

318732A2

BUCKET

96 in

1шт.

6

323002A1

EDGE, CUTTING

72 in

1шт.

6

323003A1

EDGE, CUTTING

84 in

1шт.

6

323004A1

EDGE, CUTTING

96 in

1шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 in

1шт.

8

429-1012

NUT,3/4"-10, G8

1шт.
