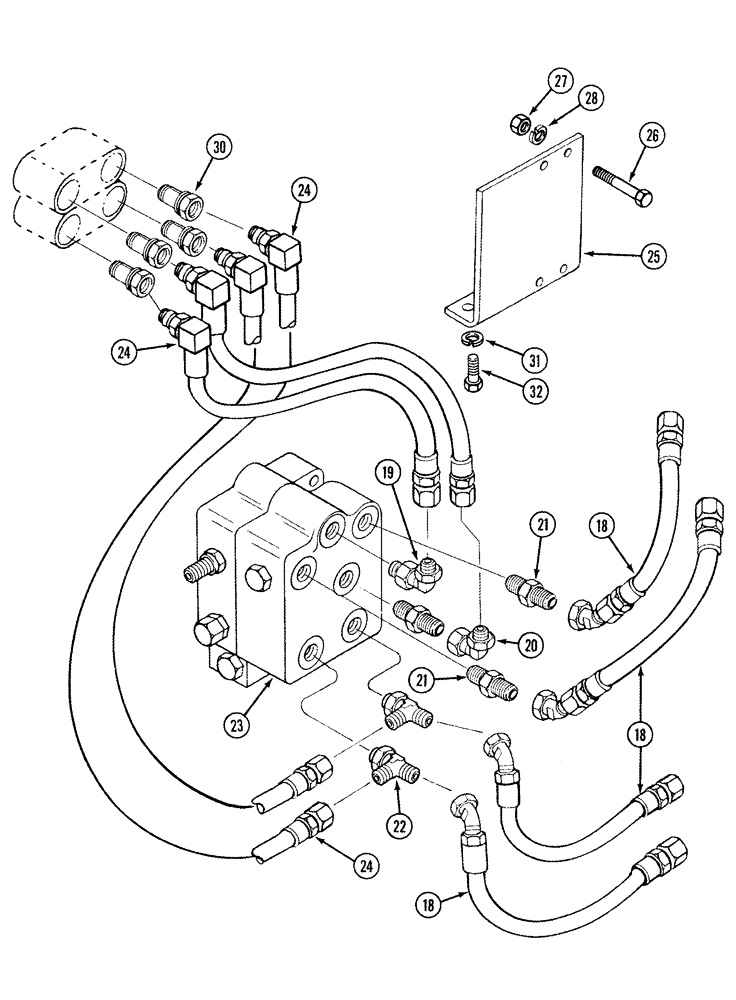

Запчасти Case IH L655 (08-18[02]) - HYDRAULICS MID MOUNT 2 FUNCTION WITH SELF LEVELING (08) - HYDRAULICS

18

327219A1

HOSE ASSY.

559 mm (22 in)

4шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or

1шт.

20

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

3шт.

22

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl br x fl x Or

2шт.

23

327226A2

VALVE, CONTROL

1шт.

23a

395013A1

COIL SPRING

Not Illustrated

1шт.

23b

395266A1

SEAL KIT

Not Illustrated

1шт.

24

357391A1

HOSE ASSY.

1905 mm (75 in)

4шт.

25

327225A2

SHEET

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

27

425-105

NUT,5/16"-18, G5

2шт.

28

492-11031

LOCK WASHER,5/16"

2шт.

30

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

4шт.

30a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated, Used with Ref 30

4шт.

31

614-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 8.8, Full Thd

M20 x 45

2шт.

32

892-11020

LOCK WASHER,M20

2шт.
