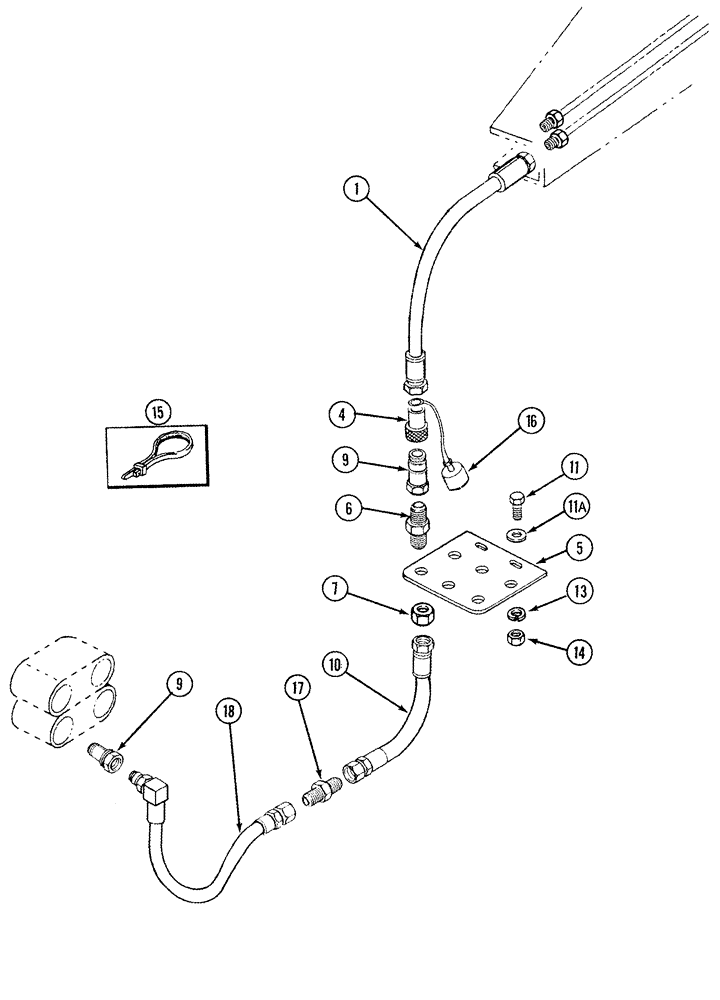

Запчасти Case IH L655 (08-16) - HYDRAULICS MID MOUNT 2 Function Without Self Leveling (08) - HYDRAULICS

1

327199A2

HOSE

1778 mm (70 in)

4шт.

4

1272400C1

COUPLING

Female

4шт.

4a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated, Used with Ref 4

4шт.

5

327222A1

PLATE

1шт.

6

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

7

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

4шт.

9

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

8шт.

9a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated, Used with Ref 9

4шт.

10

357376A1

HOSE ASSY.

1778 mm (70 in)

4шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

11a

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

2шт.

15

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" TIE

3шт.

16

333717A1

CAP

Female, Blue

1шт.

16

333719A1

CAP

Female, Yellow

1шт.

16

333721A1

CAP

Female, Red

1шт.

16

333722A1

CAP

Female, Green

1шт.

17

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

4шт.

18

357391A1

HOSE ASSY.

1905 mm (75 in)

4шт.
