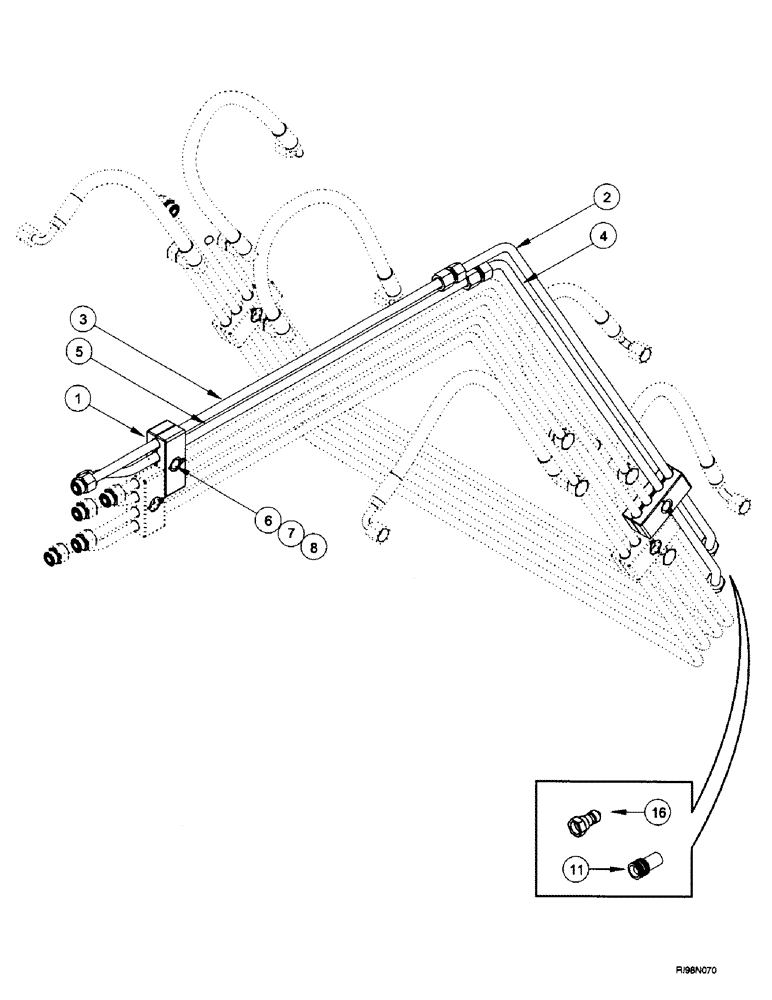

Запчасти Case IH L650 (8-04) - HYDRAULICS - AUXILIARY (08) - HYDRAULICS

1

324067A1

BRACKET

4шт.

2

348763A1

HYD TUBE

bottom

1шт.

3

348762A1

HYD TUBE,0.5" OD, 981.1 mm Length

top

1шт.

4

348765A1

HYD TUBE

bottom

1шт.

5

348764A1

HYD TUBE,0.5" OD, 1013.9 mm Length

top

1шт.

6

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Not illustrated

2шт.

11

1272400C1

COUPLING

female

1шт.

16

1272399C2

QUICK MALE COUPLING

7/8 NF, self-sealing, male

1шт.
