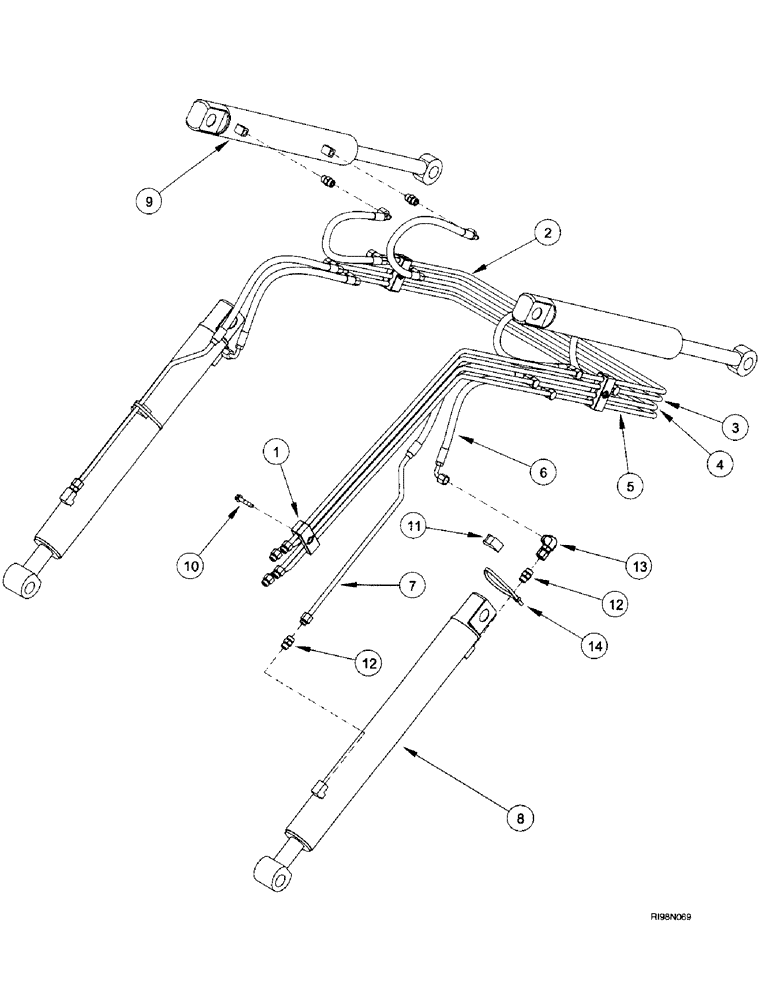

Запчасти Case IH L650 (8-02) - HYDRAULICS - LOADER FRAME (08) - HYDRAULICS

1

324067A1

BRACKET

4шт.

2

349513A1

HYD TUBE

BUCKET dump

1шт.

3

349514A1

HYD TUBE

BUCKET rollback

1шт.

4

349515A1

HYD TUBE

lower

1шт.

5

349516A1

HYD TUBE

raise

1шт.

6

345381A1

HOSE,9.53mm ID x 609.6mm L, SAE 100R17

610 mm (24 in.)

8шт.

7

324949A1

TUBE

2шт.

8

338104A1

CYLINDER

ASSY., 76 ID x 698.5 mm strk #L600(2) lift See Figure(s) : 8-50

1шт.

8

338106A1

CYLINDER

ASSY., 82.5 ID x 724 mm strk #L650(2) lift See Figure(s) : 8-52

1шт.

9

338105A1

CYLINDER

ASSY., 76 ID x 451 mm stk #L600(2) bucket See Figure(s) : 8-54

1шт.

9

338107A1

CYLINDER

ASSY., 82.5 ID x 495 mm strk #L650(2) bucket See Figure(s) : 8-56

1шт.

10

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3шт.

11

D38648

BLOCK

SADDLE

2шт.

12

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., 13/16"-16 ORFS x 3/4"-16 ORB

8шт.

13

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

90

2шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

711 mm (28 in.)

2шт.
