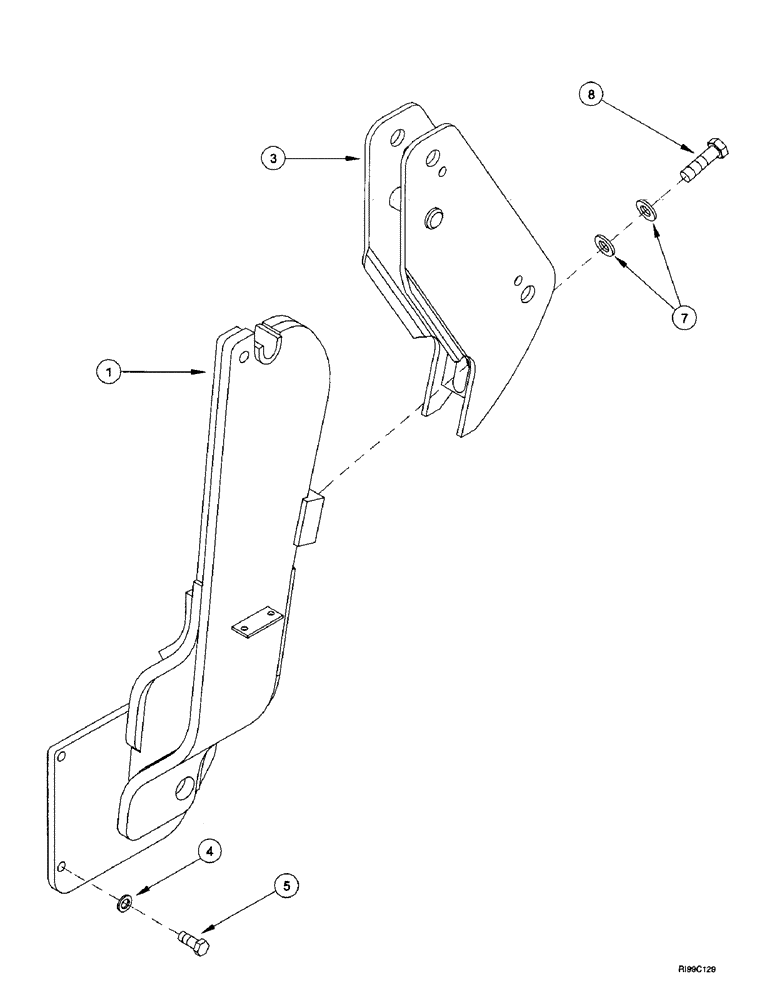

Запчасти Case IH L650 (9-08) - MOUNTING BRACKETS (MX100 - MX135) (09) - CHASSIS/ATTACHMENTS

1

352557A1

BRACKET

right hand

1шт.

1

352559A1

BRACKET

left hand Not Illustrated

1шт.

3

321024A3

LEVER

BRACKET

2шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

10шт.

5

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

BOLT, Hex, M20 x 50, 10.9, Full Thd

10шт.

7

496-31106

WASHER,1 1/16" x 2" x .219", HDN

1-1/16 x 2 x 7/32

4шт.

8

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

1 x 3-1/2

2шт.
