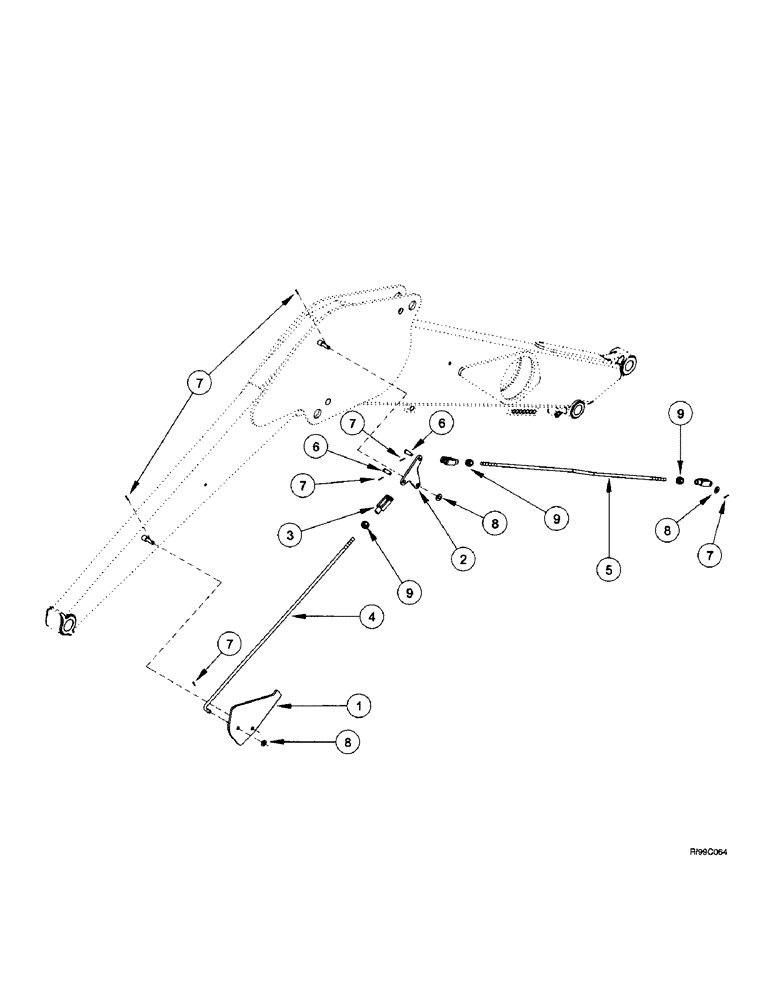

Запчасти Case IH L650 (9-04) - BUCKET LEVEL INDICATOR (09) - CHASSIS/ATTACHMENTS

1

347813A1

PIVOT

INDICATOR

1шт.

2

347815A1

PIVOT

1шт.

3

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, 3/8"-24 x 2 1/2"

3шт.

4

353882A1

LINK

upper

1шт.

5

348438A1

LOWER LINK

lower

1шт.

6

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

2шт.

7

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

9

425-156

JAM NUT,Jam, 3/8"-24, G5

3шт.
