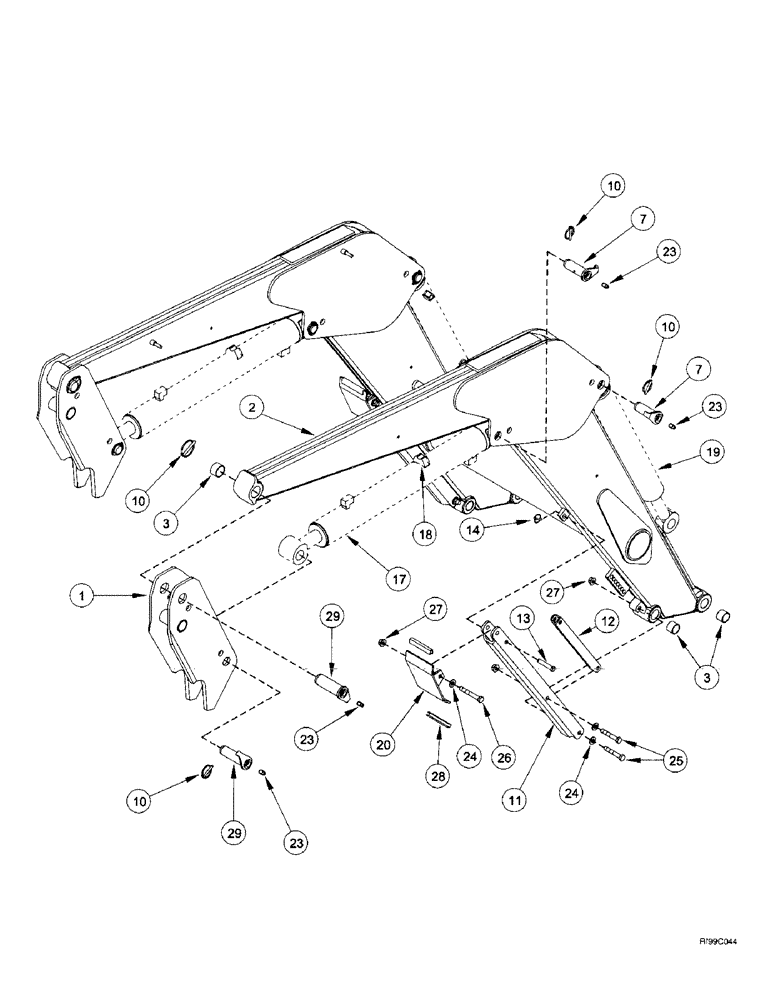

Запчасти Case IH L650 (9-02) - FRAME (L600/L650) (09) - CHASSIS/ATTACHMENTS

1

321024A3

LEVER

BRACKET

2шт.

2

299258A2

FRAME ASSY

1шт.

3

318872A1

BUSHING

12шт.

7

318870A2

PIN ASSY.

2шт.

10

A61560

LOCK PIN

8шт.

11

320791A2

CHANNEL

2шт.

12

320794A1

TUBE,365 mm Length

2шт.

13

439-5844

HEADED PIN,1/2" x 2 3/4", G5

1/2 x 2-3/4

2шт.

14

302676A1

LINCH PIN

2шт.

17

REF

INSTRUCTION

CYLINDER ASSY. Lift See Figure : 8-45, 8-47

2шт.

18

REF

INSTRUCTION

SADDLE See Figure(s) : 8-2 Ref 11

2шт.

19

REF

INSTRUCTION

CYLINDER ASSY., bucket SeeFigures : 8-49 and 8-51

2шт.

20

328951A1

STAND

FOOT

2шт.

23

219-14

LUBE NIPPLE,1/4" NPTF

12шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

25

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3

4шт.

26

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2 x 3-1/2

2шт.

27

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

6шт.

28

338889A1

MOLDING

TRIM

4шт.

29

313907A2

PIN ASSY.

2шт.
