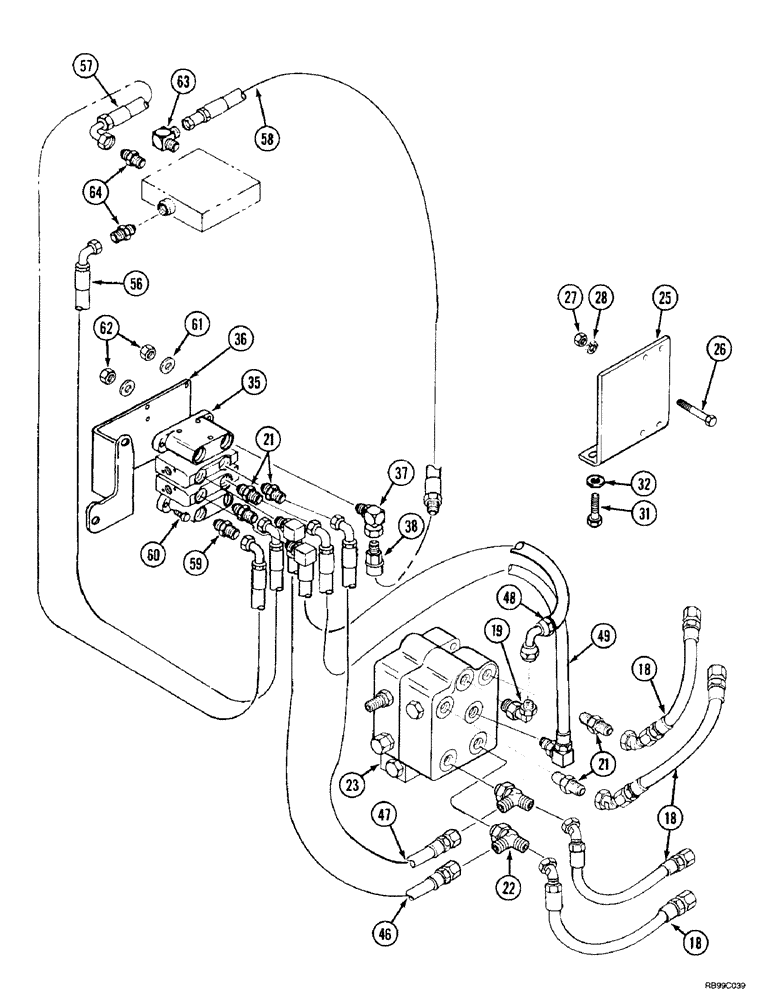

Запчасти Case IH L650 (8-22) - HYDRAULICS - EXTERNAL VALVE (2 FUNCTION WITH SELF LEVELING) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
18
327219A1
HOSE ASSY.
559 mm (22 in.)
4шт.
19
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Adj. 90º, 7/8"-14, 37º x 7/8"-14, O-Ring
1шт.
21
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
7/8 fl x Or
4шт.
22
218-5241
TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
2шт.
23
328001A1
VALVE
self level
1шт.
25
327225A2
SHEET
PLATE
1шт.
26
413-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
2шт.
27
425-105
NUT,5/16"-18, G5
2шт.
28
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16") 5/16", SAE
2шт.
31
614-20050
BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd
2шт.
32
892-11020
LOCK WASHER,M20
WASHER, LOCK, M20
2шт.
35
105080A1
VALVE
ASSY. control See Figure(s) : 8-40
1шт.
36
246939A2
SUPPORT
1шт.
37
218-5201
90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem
90
1шт.
38
T53145
CHECK VALVE
1шт.
46
327217A1
HOSE ASSY.
222 mm (8.75 in.)
1шт.
47
327200A1
HOSE ASSY.
311 mm (12.25 in.)
1шт.
48
327218A1
HOSE ASSY.
483 mm (19 in.)
1шт.
49
327209A1
HOSE ASSY.
368 mm (14.5 in.)
1шт.
56
222637A2
HOSE ASSY.
1593 mm (62 in.)
1шт.
57
222635A1
HOSE ASSY.,15.88mm ID x 1270mm L
1270 mm (50 in)
1шт.
58
222638A1
HOSE ASSY.
1143 mm (45 in)
1шт.
59
201-103
HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB
CONNECTOR, HYD., 1"-14 ORFS x 7/8"-14 ORB
2шт.
201-103 CONNECTOR, 5/8 ORFS-ORB 5/8
1шт.
60
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
4шт.
61
492-11038
LOCK WASHER,3/8"
4шт.
62
425-106
NUT,3/8"-16, Cl 5
4шт.
63
700-345
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB
90 11/16 fc sl x 18 Or
1шт.
64
700-103
HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB
CONNECTOR, HYD., 1"-14 ORFS x M22 x 1.5 ORB
2шт.
237-6010 S O-RING, 5/8 OD TUBE CLASS 6
1шт.
238-6016 S O-RING, 5/8 x 3/4 CLASS 6
1шт.
700-103 CONNECTOR, 16 mm ORFS x M22 ORB
1шт.
637-63193 O-RING, 2.2W x 19.3 ID mm CL 6
1шт.
Выбрано товаров: 33
